SELECT A DIAGRAM

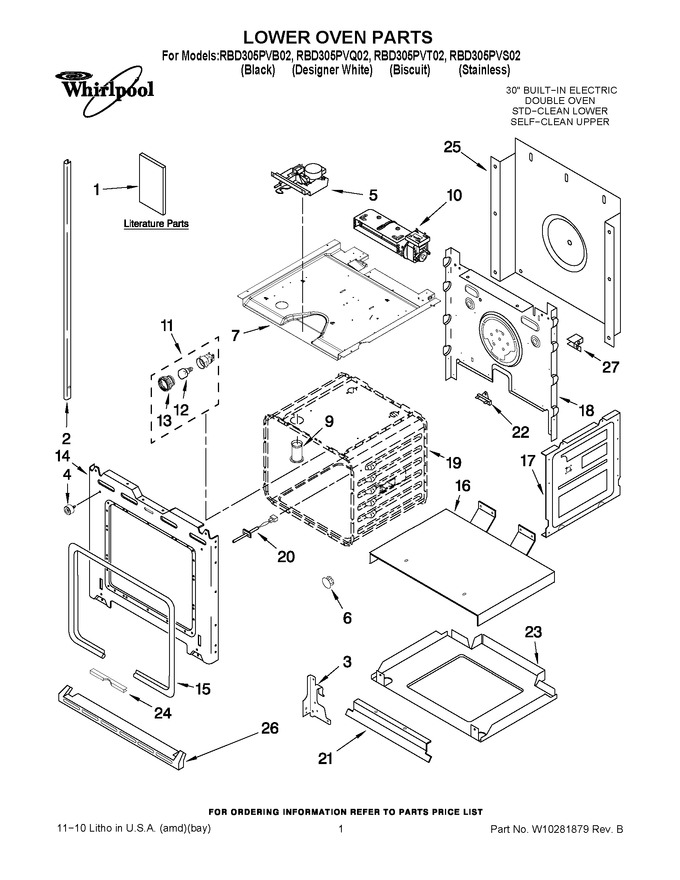

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
1	W10192049		Installation Instructions		Appelez-nous	-
1	W10075750		Bi-lingual		Appelez-nous	-
1	W10192041		Use & Care Guide		Appelez-nous	-
1	4457288		Installation Inst- Bottom Trim		Appelez-nous	-
1	9762761		Brochure, Tips Safe Cooking (english)		Appelez-nous	-
1	8302068		Tech Sheet		Appelez-nous	-
2	W10145002		Trim, Sideleft (stainless)		Appelez-nous	-
2	W10207435		Trim, Side Right (black)		Appelez-nous	-
2	W10207437		Trim, Side Right (white)		Appelez-nous	-
2	W10207440		Trim, Side Right (biscuit)		Appelez-nous	-
2	W10145003		Trim, Side Right (stainless)		Appelez-nous	-
2	WPW10339500		Trim, Sideleft (black)   (Replaces: W10207436)				$ 204.80
2	WPW10339502		Trim, Sideleft (white)   (Replaces: W10207439)				$ 128.76
2	W10207441		Trim, Sideleft (biscuit)		Appelez-nous	-
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	W10105790		Bumper, Door				$ 7.41
5	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
6	4450935		Plug, Door		Appelez-nous	-
7	8303099		Top Chassis				$ 70.97
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 122.46
10	WPW10016550		Blower, Stainless Model Only   (Replaces: W10016550)			Immediately	$ 283.63
11	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
13	W10067870		Lens, Light				$ 65.50
14	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 351.89
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W10203265		Gasket, Door				$ 96.90
16	4451478		Support, Insulation				$ 54.10
17	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
18	W10161110		Back, Chassis		Appelez-nous	-
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
20	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
20	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
21	9760677		Deflector, Vent				$ 155.46
22	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
22	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 45.50
23	9759713		Base, Chassis				$ 100.19
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
26	WPW10207689		Trim, Bottom Vent (white)   (Replaces: W10207690)				$ 205.84
26	WPW10207689		Trim, Bottom Vent (black)   (Replaces: W10207689)				$ 205.84
26	WP3400832		Trim, Bottom Vent (screw)   (Replaces: 3400832)			Immediately	$ 8.18
26	WPW10207689		Trim, Bottom Vent (biscuit)   (Replaces: W10207691)				$ 205.84
26	W10151131		Trim, Bottom Vent (stainless)		Appelez-nous	-
27	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
27	4449845		Support, Bracket		Appelez-nous	-
NI	4450365		Insulation, Back				$ 70.95
NI	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
