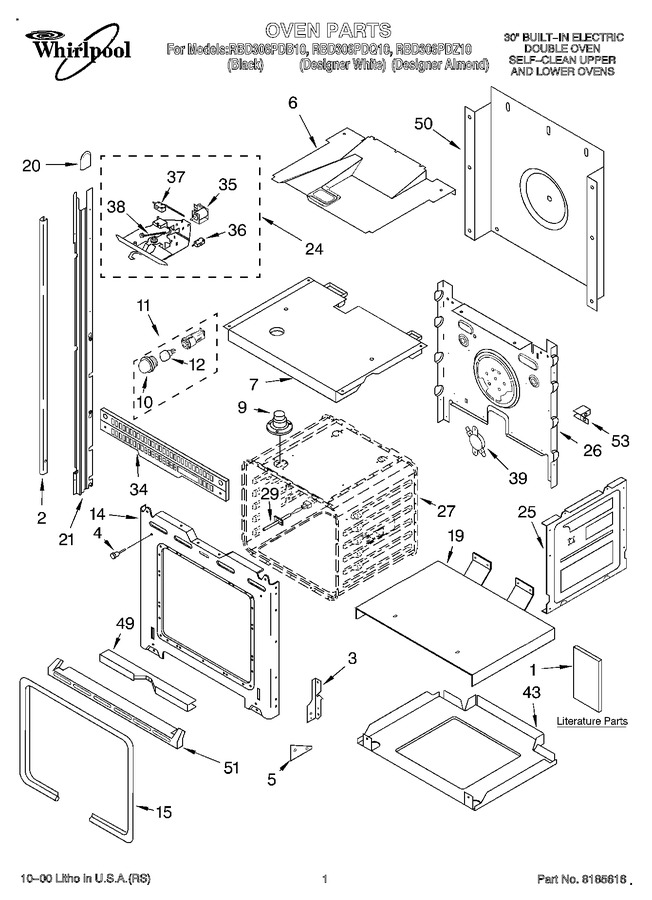

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450411		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4450568		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT4451887		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
2	4450852		Trim, Side (right Hand) (almond Model)		Appelez-nous	-
2	4450853		Trim, Side (lh Black)		Appelez-nous	-
2	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
2	4450855		Trim, Side (left Hand)) (almond Model)		Appelez-nous	-
2	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
2	4449041		Trim, Side (screw) (white & Almond Mls)				$ 5.27
2	4450850		Trim, Side (rh Black)		Appelez-nous	-
3	4455722		Reciever, Hinge (left Hand)				$ 37.47
3	4455723		Reciever, Hinge (right Hand)				$ 37.24
4	4448520		Bumper, Door				$ 22.25
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
6	4452201		Divider, Vent		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455286		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4451740		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 238.23
21	814373		Rail, Side (right)   (Replaces: 4450581)				$ 237.85
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
24	4451896		Latch Assembly				$ 163.41
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452234		Back, Chassis		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
34	4452267		Vent, Center				$ 67.43
35	4452224		Solenoid		Appelez-nous	-
36	4452312		Switch, Micro				$ 90.43
37	4451426		Switch, Micro		Appelez-nous	-
38	4451537		Spring, Latch		Appelez-nous	-
39	WP9759243		Thermostat (tod) (upper)   (Replaces: 4451442)			Immediately	$ 55.44
39	WP9759242		Thermostat (tod) (lower)   (Replaces: 4452223)			Immediately	$ 85.57
43	4455530		Base, Chassis		Appelez-nous	-
43	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4450289		Trim, Bottom (screw)		Appelez-nous	-
51	4448477		Trim, Bottom (black Model)				$ 71.44
51	4448478		Trim, Bottom (white Model)		Appelez-nous	-
51	4448862		Trim, Bottom (almond Model)		Appelez-nous	-
53	4449845		Bracket-support		Appelez-nous	-
53	4450365		Insulation, Back				$ 70.95
53	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
