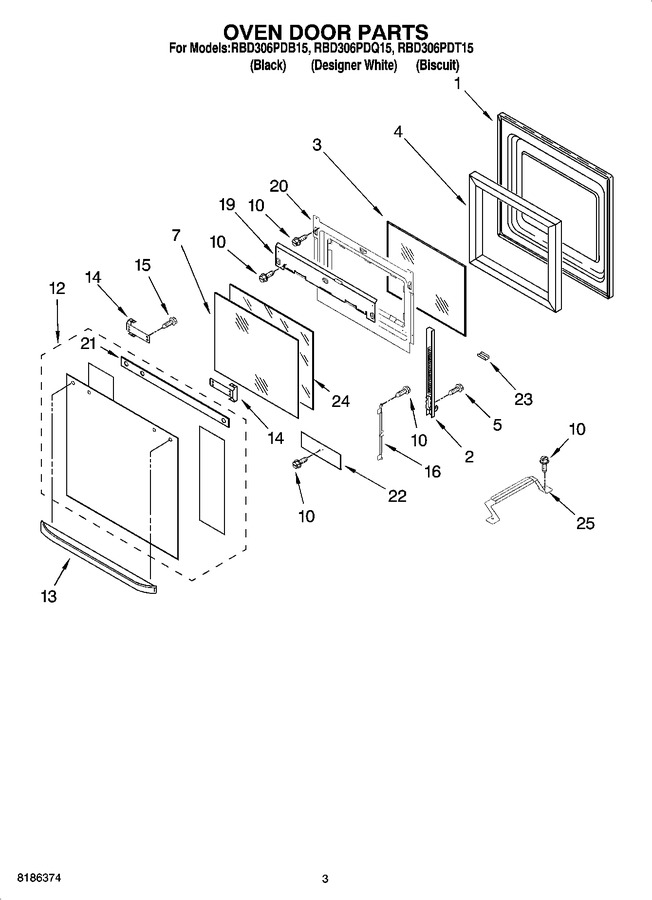

02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4457127)				$ 370.46
2	WP9760571		Hinge, Door (r.side)   (Replaces: 9760571)			Immediately	$ 114.51
2	WP9760572		Hinge, Door (l.side)   (Replaces: 9760572)				$ 111.96
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
7	9759228		Glass, Inner				$ 87.91
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
12	8300894		Door Glass, Assy (biscuit Model)		Appelez-nous	-
12	8300899		Door Glass, Assy (white Model)		Appelez-nous	-
12	8300903		Door Glass, Assy (black Model)		Appelez-nous	-
13	4452860		Door Handle (biscuit Model)		Appelez-nous	-
13	4448854		Door Handle (black Model)				$ 74.07
13	4448855		Door Handle (white Model)		Appelez-nous	-
14	4450813		Bracket, Handle				$ 24.20
15	W10276642		Screw   (Replaces: 4451040)				$ 6.41
16	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
19	4457104		Shield, Heat   (Replaces: 4457103)				$ 39.22
20	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
21	8300820		Seal, Door Top		Appelez-nous	-
22	4457114		Shield, Heat-bottom				$ 217.79
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit Model)		Appelez-nous	-
24	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
25	9759230		Bracket (3rdglass)				$ 36.30
