SELECT A DIAGRAM

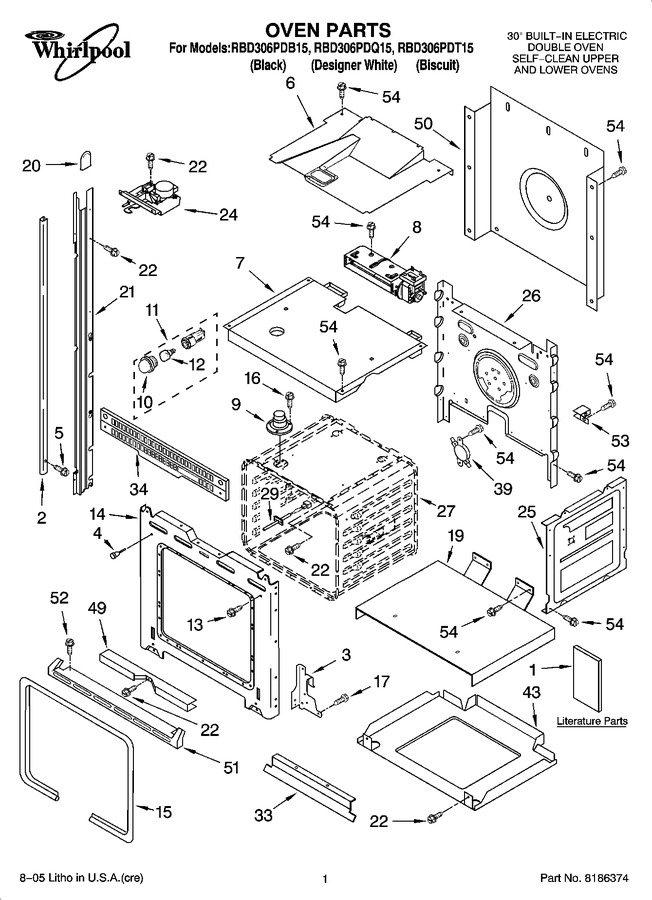

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300654		Installation Instructions		Appelez-nous	-
1	8302068		Tech Sheet		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	8300772		Use & Care Guide (oven)		Appelez-nous	-
2	4450850		Trim, Side (rh Black)		Appelez-nous	-
2	4450851		Trim, Side (rh White)		Appelez-nous	-
2	4452122		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4450853		Trim, Side (lh Black)		Appelez-nous	-
2	4450854		Trim, Side (lh White)		Appelez-nous	-
2	4452123		Trim, Side (lh Biscuit)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	4448520		Bumper, Door				$ 22.25
5	WP8281236		Screw (black)   (Replaces: 8281236)				$ 8.16
5	WP694091		Screw (s.steel)   (Replaces: 694091)				$ 7.55
6	8302349		Divider, Vent				$ 142.26
7	4455865		Top, Chassis		Appelez-nous	-
8	WPW10016550		Blower   (Replaces: 6610168)			Immediately	$ 283.63
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	9759060		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
17	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	814373		Rail, Side (right Side)   (Replaces: 4450581)				$ 237.85
21	814374		Rail, Side (left Side)   (Replaces: 4450582)				$ 238.23
22	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP9760889		Latch Assy   (Replaces: 9759525)			Immediately	$ 345.08
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452234		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
33	4457117		Deflector, Vent		Appelez-nous	-
34	4452267		Vent, Center				$ 67.43
39	WP9759243		Thermostat (tod) (lower)   (Replaces: 9759243)			Immediately	$ 55.44
39	WP9759242		Thermostat (tod) (upper)   (Replaces: 9759242)			Immediately	$ 85.57
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4448477		Trim, Bottom (black Model)				$ 71.44
51	4452415		Trim, Bottom (biscuit Model)		Appelez-nous	-
51	4448478		Trim, Bottom (white Model)		Appelez-nous	-
52	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
53	4449845		Support, Bracket		Appelez-nous	-
54	4450365		Insulation, Back				$ 70.95
54	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
54	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
54	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
