SELECT A DIAGRAM

01 - Lower Oven


02 - Upper Oven


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Control Panel, Literature


07 - Top Venting, Optional

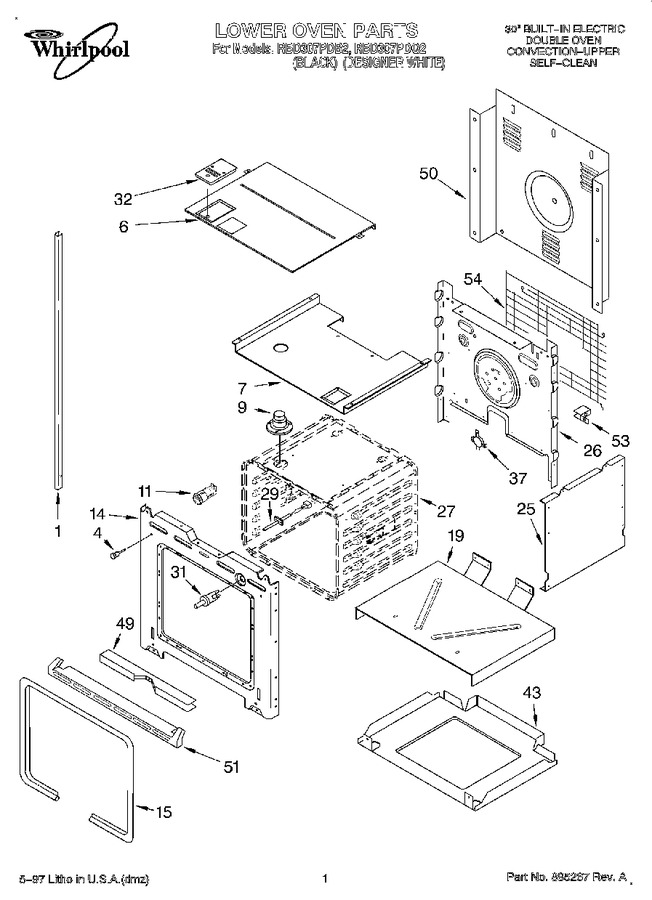

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
1	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
1	4450853		Trim, Side (lh Black)		Appelez-nous	-
1	4450850		Trim, Side (rh Black)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
1	4449041		Trim, Side (screw) (white Model)				$ 5.27
4	4448520		Bumper, Door				$ 22.25
6	4451039		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4451166		Partition		Appelez-nous	-
9	4449009		Tube, Vent		Appelez-nous	-
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
11	4450706		Oven Light Assy		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	4450417		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W11675844		Gasket, Door   (Replaces: 4449372)			Immediately	$ 74.56
19	4450542		Support, Insulation		Appelez-nous	-
25	4450528		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4451169		Back, Chassis		Appelez-nous	-
29	4450026		Sensor		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
31	4450819		Switch, Door		Appelez-nous	-
32	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
32	4449369		Vent Box Assy		Appelez-nous	-
37	WP4450249		Thermostat (tod) (temp.) Spst   (Replaces: 4450249)			Immediately	$ 211.50
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4451398		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	4450544		Cover, Back		Appelez-nous	-
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4448478		Trim, Bottom (white Model)		Appelez-nous	-
51	4450289		Trim, Bottom (screw)		Appelez-nous	-
51	4448477		Trim, Bottom (black Model)				$ 71.44
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
54	4450365		Insulation, Back				$ 70.95
54	4451002		Spacer, Harness		Appelez-nous	-
54	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
54	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
