SELECT A DIAGRAM

01 - Lower Oven Parts


02 - Upper Oven Parts

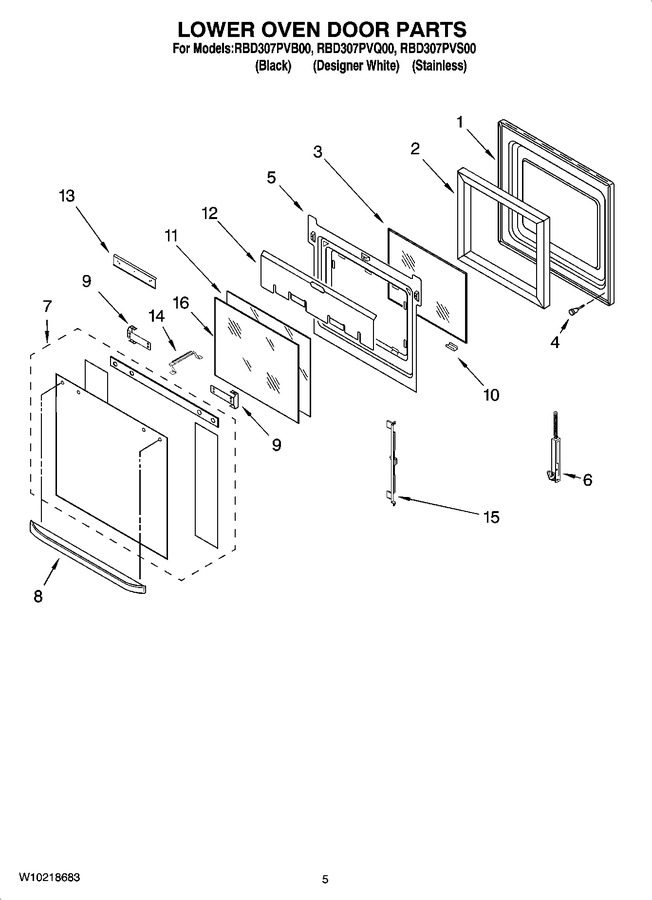

03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Door   (Replaces: 9759413)				$ 370.46
2	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	4448520		Bumper, Door				$ 22.25
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
6	WP9760574		Hinge, Door (for Stainless Model Only) (left)   (Replaces: 9760574)			Immediately	$ 67.07
6	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	9760573		Hinge, Door (for Stainless Model Only) (right)				$ 48.80
6	WP9760576		Hinge, Door (left)   (Replaces: 9760576)			Immediately	$ 56.46
6	WP9760575		Hinge, Door (right)   (Replaces: 9760575)			Immediately	$ 64.57
7	W10200755		Assembly, Door Glass (white)				$ 137.30
7	W10200754		Assembly, Door Glass (black)				$ 140.66
7	W10401225		Assembly, Door Glass (stainless)   (Replaces: W10176986)				$ 321.60
8	W10169801		Door Handle (black)				$ 79.57
8	W10169803		Door Handle (white)				$ 73.49
8	W10169798		Door Handle (stainless)				$ 78.71
9	4455804		Bracket, Handle (left)				$ 25.95
9	4455803		Bracket, Handle (right)				$ 30.70
10	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
10	W10158497		Retainer, Glass Clip (stainless)				$ 5.65
10	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
11	9759228		Glass, Inner				$ 87.91
12	4457104		Sheild, Heat-top   (Replaces: 4457103)				$ 39.22
13	4457114		Sheild, Heat-bottom				$ 217.79
14	9759230		Bracket, Central Glass				$ 36.30
15	WP9759229		Bracket, Glass   (Replaces: 9759229)				$ 187.50
16	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20

    View Diagram in Separate Window       Print Part List
