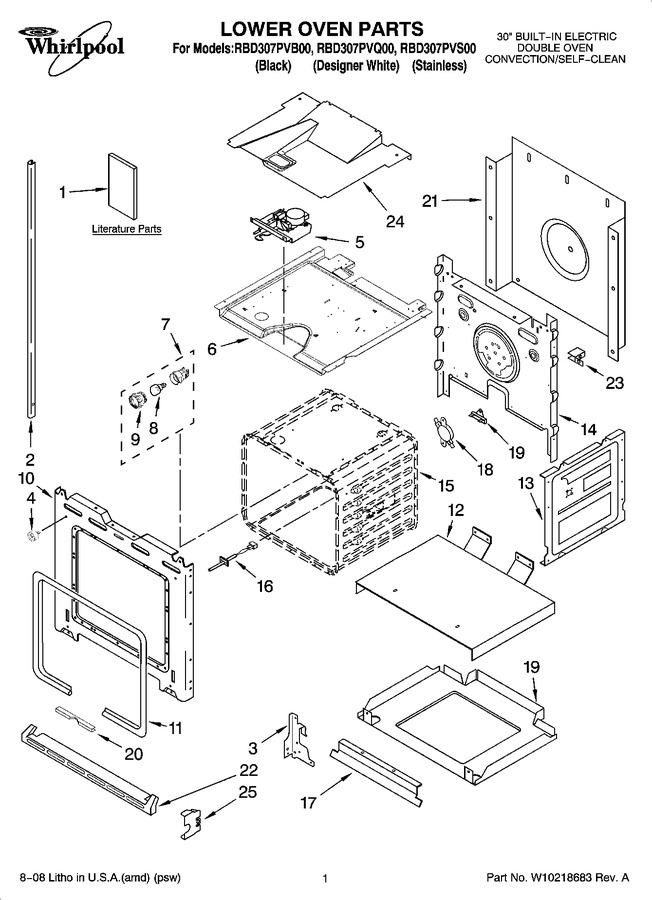

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192049		Installation Instructions		Appelez-nous	-
1	W10191015		Use & Care Guide		Appelez-nous	-
1	8302068		Tech Sheet		Appelez-nous	-
2	WPW10339500		Trim, Side Left (black)   (Replaces: W10207436)				$ 195.05
2	W10207435		Trim, Side Right (black)		Appelez-nous	-
2	W10207437		Trim, Side Right (white)		Appelez-nous	-
2	W10145003		Trim, Side Right (stainless)		Appelez-nous	-
2	WPW10339502		Trim, Side Left (white)   (Replaces: W10207439)				$ 122.63
2	W10145002		Trim, Side Left (stainless)		Appelez-nous	-
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 119.41
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 115.36
4	W10105790		Bumper, Door				$ 7.06
5	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 328.65
6	8303099		Top Chassis				$ 70.97
7	WPW10734065		Assembly, Oven Light   (Replaces: W10009930)				$ 96.63
8	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
9	W10067870		Lens, Light				$ 65.50
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
10	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
10	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
10	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 335.13
11	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 69.75
12	4451478		Support, Insulation				$ 54.10
13	W10782197		Side, Chassis   (Replaces: 4455641)				$ 143.51
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
14	W10161110		Back, Chassis		Appelez-nous	-
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
16	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
16	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
17	9760677		Deflector, Vent				$ 155.46
18	WP9759242		Fuse, Thermal   (Replaces: 9759242)			Immediately	$ 85.57
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
19	9759713		Base, Chassis				$ 100.19
19	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
20	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.86
20	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
21	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
21	WP4451747		Cover-back   (Replaces: 4451747)				$ 142.92
22	WPW10207689		Trim, Bottom Vent (white)   (Replaces: W10207690)				$ 196.04
22	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 7.75
22	WPW10207689		Trim, Bottom Vent (black)   (Replaces: W10207689)				$ 196.04
22	W10145001		Trim, Bottom Vent (stainless)		Appelez-nous	-
23	4449845		Support, Bracket		Appelez-nous	-
23	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
24	8302349		Divider, Center Vent				$ 142.26
25	4452152		Bracket, Mounting Bottom Vent Trim				$ 33.50
	4450365		Insulation, Back				$ 70.95
	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 118.90
