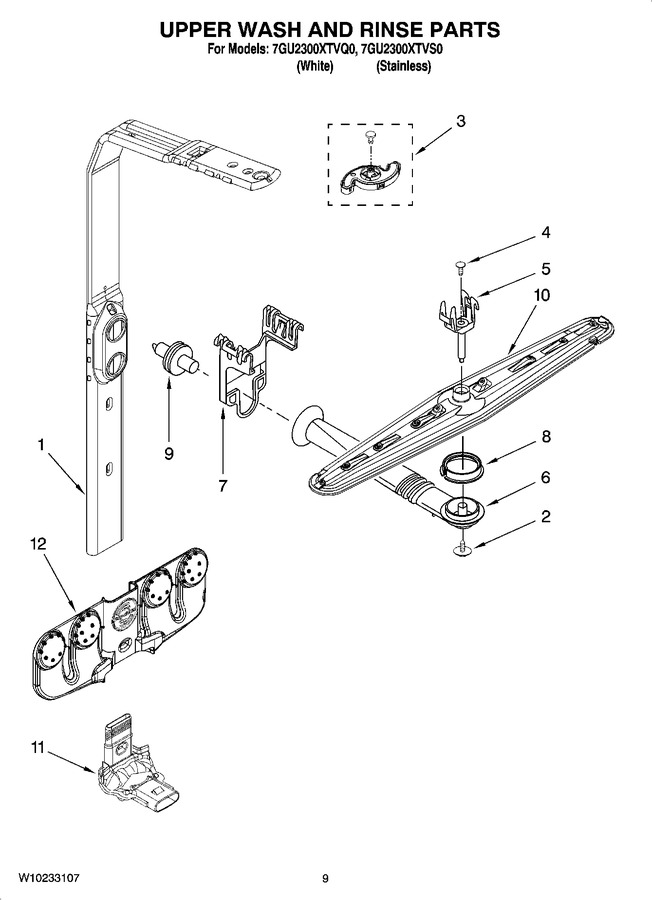

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8559849 | Feed Tube Assembly (also Includes Item 3) |
|
$ 67.60 | |||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 7.99 | |||||
| 3 | 8193983 | Spinner, 3rd Level Wash (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | 3400920 | Cover, Screw |
|
$ 7.78 | |||||
| 5 | WP8268321 | Mount (Replaces: 8268354) |
|
$ 100.43 | |||||
| 6 | WPW10323423 | Manifold (Replaces: 8268356) |
|
$ 94.84 | |||||
| 7 | WP8268349 | Hanger (Replaces: 8268349) |
|
$ 10.07 | |||||
| 8 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.21 | ||||
| 9 | WPW10082831 | Probe (Replaces: 8268350) |
|
Immediately | $ 45.94 | ||||
| 10 | WP8561746 | Sprayarm (Replaces: 8561746) |
|
$ 74.94 | |||||
| 11 | 8575244 | Valve Assembly, Manifold |
|
$ 83.35 | |||||
| 12 | 8575618 | Manifold, Turbozone |
|
$ 56.97 |
