01 - Oven

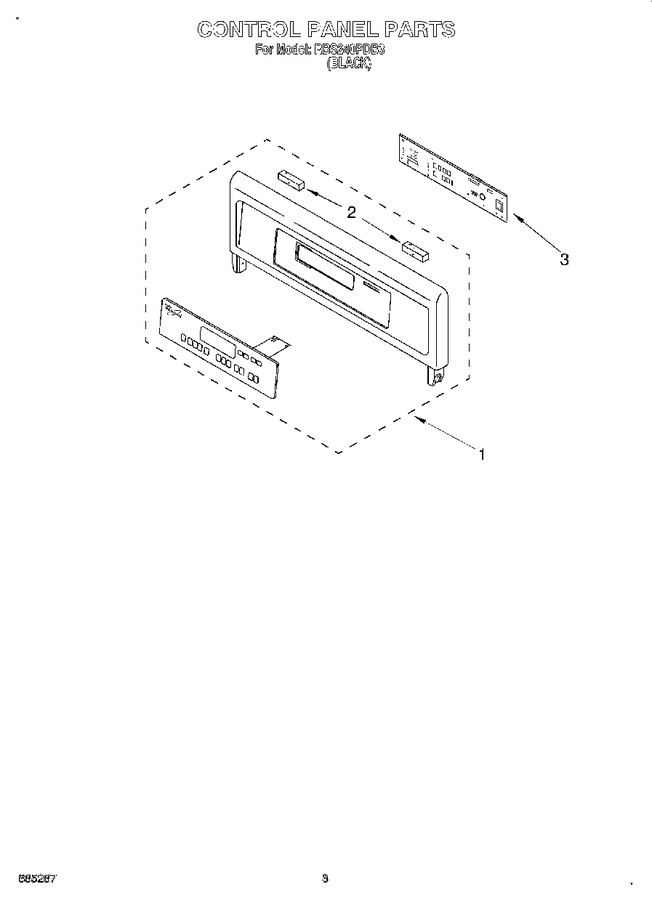

02 - Control Panel, Literature
03 - Oven Door
04 - Internal Oven
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451324 | Control Panel Assy. (w/membrane Switch) |
|
- | |||||
| 2 | 4159465 | Screw |
|
- | |||||
| 2 | 4451032 | Gasket, Control Panel |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 3 | 4448873 | Microcomputer |
|
- | |||||
| LIT4450409 | Installation Instructions |
|
- | ||||||
| LIT4450839 | Installation/ Undercounter |
|
- | ||||||
| LIT4454766 | Tech Sheet (oven) |
|
- | ||||||
| LIT4450568 | Use & Care Guide (oven) |
|
- |
