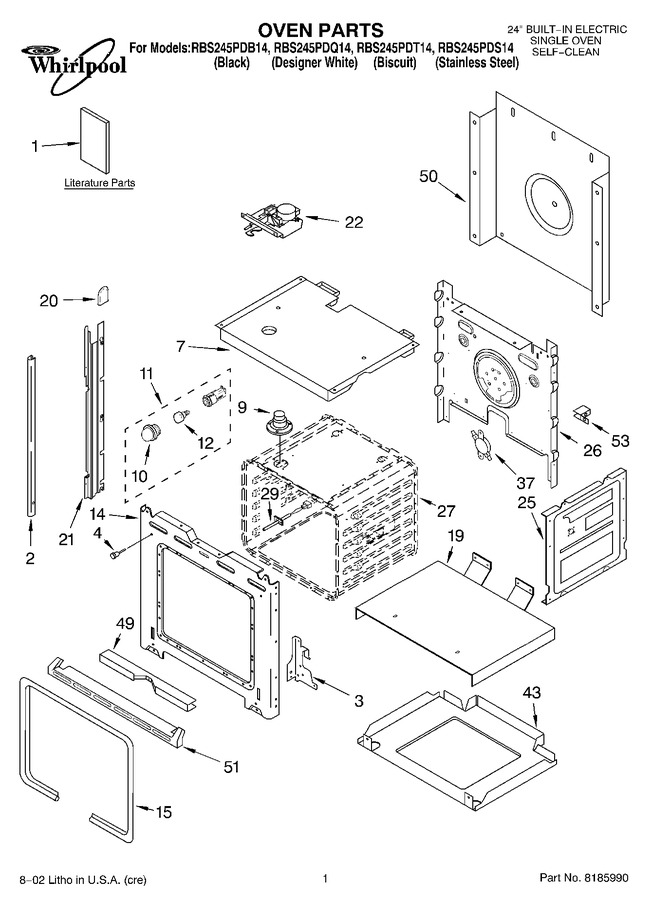

SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel


03 - Oven Door


04 - Internal Oven


05 - Top Venting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8300656		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8300772		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT8301083		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3192225		Literature Parts (installation/ Undercounter)		Appelez-nous	-
1	LIT4450841		Literature Parts (installation/ Mwo Trim Kit)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4450845		Trim, Side (rh White)		Appelez-nous	-
2	4450847		Trim, Side (lh Black)		Appelez-nous	-
2	4450844		Trim, Side (rh Black)		Appelez-nous	-
2	4450848		Trim, Side (lh White)		Appelez-nous	-
2	4452121		Trim, Side (lh Biscuit Screw)		Appelez-nous	-
2	WP8281236		Trim, Side (black Model)   (Replaces: 4449747)				$ 8.16
2	WP8281236		Trim, Side (white)   (Replaces: 8281236)				$ 8.16
2	4452120		Trim, Side (rh Biscuit)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	4448520		Bumper, Door				$ 22.25
7	4455863		Top Chassis				$ 117.60
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	9760754		Frame, Front   (Replaces: 4455610)				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
19	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
19	4451476		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 127.79
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 126.74
22	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
22	WPW10195934		Latch, Motorized   (Replaces: 8301268)			Immediately	$ 288.66
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452232		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 55.44
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4450525		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	8300528		Trim, Bottom (biscuit Model)		Appelez-nous	-
51	WP4449745		Trim, Bottom (screw)   (Replaces: 4449745)				$ 7.98
51	4448473		Trim, Bottom (black Model)		Appelez-nous	-
51	4448474		Trim, Bottom (white Model)		Appelez-nous	-
53	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
53	4449845		Support, Bracket		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
