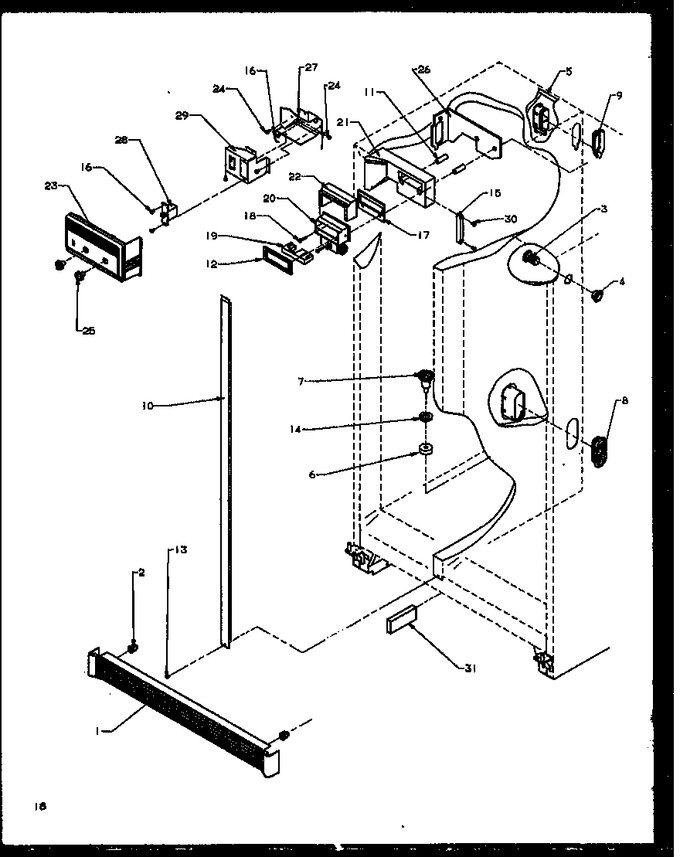

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10470301 | Kit, Toe Grille (blk) |
|
- | |||||
| 1 | 10470304 | Grille-toe, Almond |
|
- | |||||
| 1 | 10470302 | Assy, Toe Grille (white) |
|
- | |||||
| 2 | M0117301 | Clip, Grille |
|
- | |||||
| 3 | A3187702 | Tunnel, Air |
|
- | |||||
| 4 | A3187801 | Retainer |
|
- | |||||
| 5 | B5705320 | Tubing, Plastic (wtr Tank/do |
|
- | |||||
| 6 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 7.78 | |||||
| 7 | W10815413 | Funnel, Drain (Replaces: D7753901) |
|
Immediately | $ 51.50 | ||||
| 8 | D7785401 | Grille-rtn Air |
|
- | |||||
| 9 | 10178001 | Tunnel Air Supply |
|
- | |||||
| 10 | Y00000000 | See Note Vertical Mullion, White |
|
- | |||||
| 11 | A3044208 | Spacer Damper |
|
- | |||||
| 12 | 10383201 | Gasket, Damper |
|
- | |||||
| 13 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 13.47 | |||||
| 14 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 11.47 | |||||
| 15 | C8977301 | Clamp |
|
- | |||||
| 16 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 17 | B8345401 | Gasket, Damper |
|
- | |||||
| 18 | M0216539 | Screw |
|
- | |||||
| 19 | C8902601 | Insert, Control |
|
- | |||||
| 20 | D7547408 | Control, Damper |
|
- | |||||
| 21 | 10176602 | Air Duct, Waxed |
|
- | |||||
| 22 | D7788201 | Insulation |
|
- | |||||
| 23 | D7790330 | Cover, Cont. |
|
- | |||||
| 24 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 25 | D7795822 | Knob, Control |
|
- | |||||
| 26 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 27 | D7822402 | Box, Bottom Control |
|
- | |||||
| 28 | R0161092 | Control-temp (Replaces: C3615024) |
|
$ 226.99 | |||||
| 29 | D7868603 | Box, Control Top |
|
- | |||||
| 30 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 31 | B5629045 | Insulation |
|
- |
