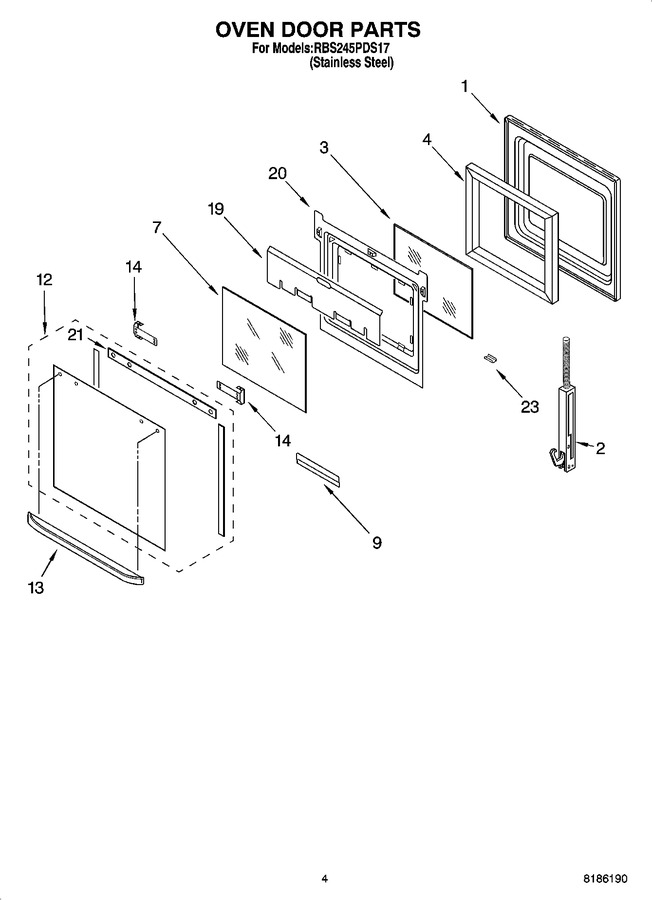

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Door Liner   (Replaces: 4455616)				$ 351.88
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
2	9760570		Hinge, Door (l.side)   (Replaces: 8300570)				$ 117.73
2	9760569		Hinge, Door (r.side)   (Replaces: 8300569)				$ 118.42
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 184.30
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 26.92
7	4449251		Glass, Inner		Appelez-nous	-
9	4451668		Retainer, Glass		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
12	9759069		Door Glass, Assy. (s. Steel)		Appelez-nous	-
13	4448402		Door Handle (black Model)		Appelez-nous	-
14	4450813		Bracket, Handle				$ 24.20
14	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4450360		Shield, Heat		Appelez-nous	-
20	4457130		Retainer, Glass   (Replaces: 8300776)		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	8300818		Seal, Door Top		Appelez-nous	-
23	WP3400832		Retainer, Clip (screw)   (Replaces: 3400832)			Immediately	$ 8.18
23	4450863		Retainer, Clip (black)		Appelez-nous	-
