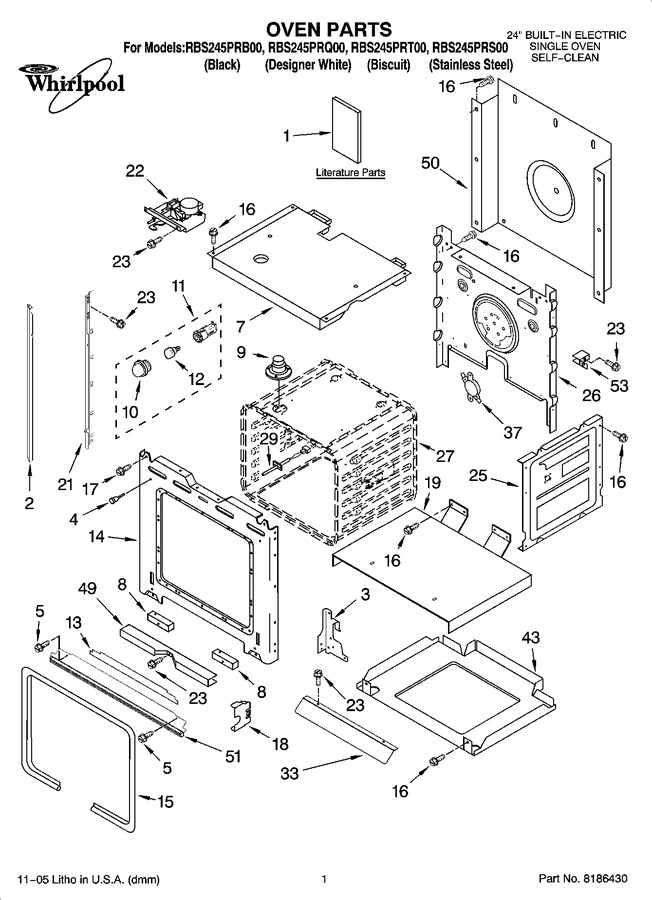

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8301928 | Installation, Mwo Trim Kit |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | 8303871 | Installation Instructions |
|
- | |||||
| 1 | 8303870 | Use & Care Guide (oven) |
|
- | |||||
| 1 | 8301758 | Tech Sheet |
|
- | |||||
| 1 | 8303946 | Installation/ Undercounter |
|
- | |||||
| 2 | 8302908 | Trim, Side (rh Black) |
|
- | |||||
| 2 | 8302909 | Trim, Side (rh White) |
|
- | |||||
| 2 | 8302911 | Trim, Side (rh Biscuit) |
|
- | |||||
| 2 | 8302907 | Trim, Side (lh Black) |
|
- | |||||
| 2 | 8302910 | Trim, Side (lh White) |
|
$ 35.87 | |||||
| 2 | 8302912 | Trim, Side (lh Biscuit) |
|
- | |||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 4 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 5 | WP3400832 | Screw (black) (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 5 | WP3400805 | Screw (zinc) (Replaces: 3400805) |
|
$ 7.55 | |||||
| 7 | 4455863 | Top Chassis |
|
$ 117.60 | |||||
| 8 | 4452490 | Spacer, Foam |
|
$ 34.83 | |||||
| 9 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 122.46 | |||||
| 10 | 4452165 | Lens, Light |
|
- | |||||
| 11 | 4452368 | Oven Light Assy |
|
- | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 13 | 8300825 | Insulation, Bottom Vent |
|
- | |||||
| 14 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 8.78 | |||||
| 14 | 9760754 | Frame, Front (Replaces: 4455610) |
|
$ 132.66 | |||||
| 14 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 15 | WP4455380 | Gasket, Door (Replaces: 4455380) |
|
Immediately | $ 174.79 | ||||
| 16 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | 4452152 | Bracket, Mounting- Bottom Vent |
|
$ 35.18 | |||||
| 19 | 4451476 | Support, Insulation |
|
- | |||||
| 19 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 21 | 8303115 | Rail, Side (right Side) |
|
$ 164.47 | |||||
| 21 | WP4448444 | Rail, Side (grommet) (Replaces: 4448444) |
|
$ 7.85 | |||||
| 21 | 8303116 | Rail, Side (left Side) |
|
- | |||||
| 22 | WP9760889 | Latch, Motorized (Replaces: 9759525) |
|
Immediately | $ 345.08 | ||||
| 23 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 150.69 | |||||
| 26 | 4452232 | Back, Chassis |
|
- | |||||
| 27 | N/A | Liner, Oven (not Serviceable) |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 95.83 | ||||
| 33 | 9760675 | Deflector, Vent |
|
$ 76.62 | |||||
| 37 | WP9759243 | Thermostat (tod) (temp.) Spst (Replaces: 9759243) |
|
Immediately | $ 55.44 | ||||
| 43 | 4450525 | Base, Chassis |
|
- | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 150.07 | |||||
| 51 | 8302942 | Trim, Bottom (black) |
|
- | |||||
| 51 | 8302943 | Trim, Bottom (white) |
|
- | |||||
| 51 | 8302944 | Trim, Bottom (biscuit) |
|
- | |||||
| 53 | WP4450363 | Insulation, Back (Replaces: 4450363) |
|
$ 189.22 | |||||
| 53 | 4449845 | Support, Bracket |
|
- | |||||
| 53 | N/A | Following Parts Not Illustrated Insulation |
|
- | |||||
| 53 | WP4449314 | Insulation, Wrap (Replaces: 4449314) |
|
$ 189.64 |
