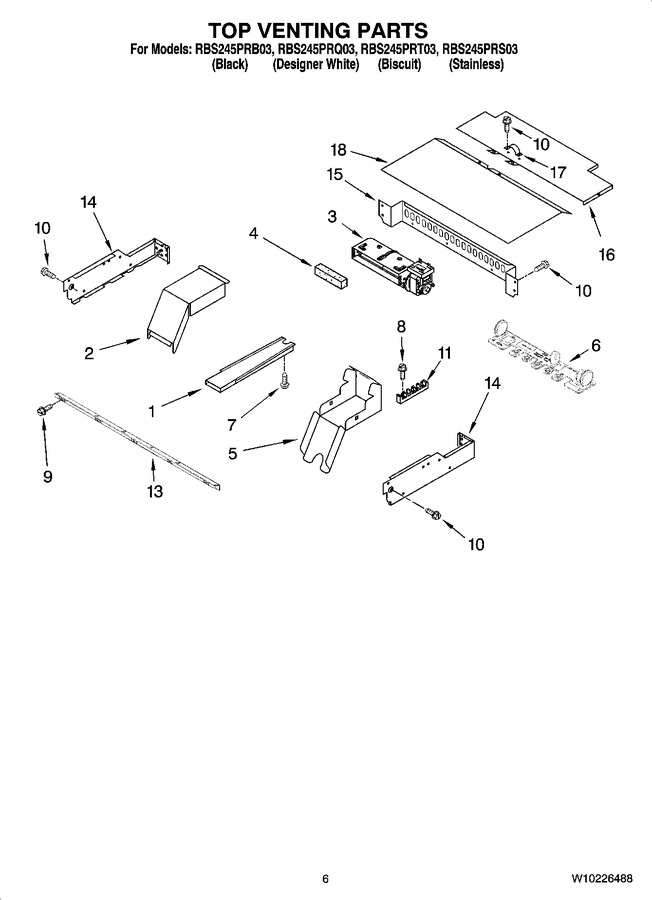

05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 105.01 | |||||
| 2 | 4455178 | Elbow, Vent- Top |
|
$ 15.52 | |||||
| 3 | WPW10176670 | Blower 60mm (Replaces: 4457289) |
|
Immediately | $ 263.76 | ||||
| 4 | W10491987 | Foam, Block (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 5 | 4455177 | Elbow, Vent- Bottom |
|
$ 11.39 | |||||
| 6 | WP8302143 | Suppressor (Replaces: 8302143) |
|
$ 120.94 | |||||
| 7 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 8 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 9 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 10 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 11 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 30.13 | ||||
| 13 | 8303499 | Vent, (control Panel) |
|
- | |||||
| 14 | W10790240 | Side, Control Top (left) (Replaces: 4451598) |
|
$ 78.41 | |||||
| 14 | W10755214 | Side, Control Top (right) (Replaces: 4451597) |
|
- | |||||
| 15 | 9759135 | Back, Control |
|
- | |||||
| 16 | 4450549 | Cover, Top Rear |
|
- | |||||
| 17 | 4448664 | Clamp |
|
$ 21.41 | |||||
| 18 | 4452365 | Cover, Top Front |
|
- | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 59.89 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 4452400 | Wiring Harness Parts (lead, Ground Strap) |
|
$ 45.42 | ||||||
| 4448664 | Wiring Harness Parts (clamp) |
|
$ 21.41 | ||||||
| 4450800 | Wiring Harness Parts (screw, Ground) |
|
$ 13.47 | ||||||
| WP4450952 | Wiring Harness Parts (conduit) (Replaces: 4450952) |
|
$ 240.98 | ||||||
| WPW10339879 | Wiring Harness Parts (tie, Cable) (Replaces: 4454842) |
|
$ 8.30 | ||||||
| 4451761 | Wiring Harness Parts (support, Wiring) |
|
- | ||||||
| 8301400 | Wiring Harness Parts (harness, Main) |
|
$ 187.24 | ||||||
| WP4449809 | Wiring Harness Parts (screw) (Replaces: 4449809) |
|
Immediately | $ 7.55 | |||||
| WP482338 | Adhesive Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | |||||
| 591014 | Adhesive (adhesive Loctite (1/3 Oz.)) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 27.83 | ||||||
| 350930 | Paint, Spray (white) |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Spray (black) (Replaces: 830864) |
|
$ 59.89 | ||||||
| WP4448950 | Screw, Install (2) (Replaces: 4448950) |
|
$ 8.16 | ||||||
| 814381 | Pin Hinge Kit |
|
$ 11.28 | ||||||
| WPW10339879 | Tie, Cable (Replaces: 535183) |
|
$ 8.30 | ||||||
| WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 |
