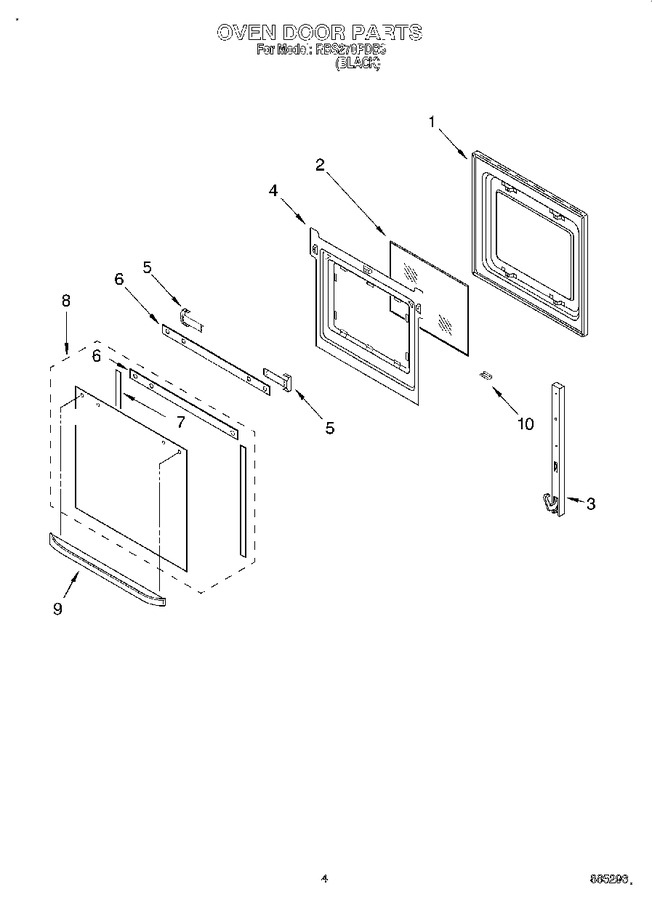

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450428		Door Liner		Appelez-nous	-
2	WP4449253		Glass, Inner   (Replaces: 4449252)				$ 168.61
3	WP4449743		Screw (4)   (Replaces: 4449743)				$ 7.55
3	4451171		Hinge, Door		Appelez-nous	-
4	WP4449809		Screw (4)   (Replaces: 4449809)			Immediately	$ 7.55
4	4450422		Retainer, Glass		Appelez-nous	-
5	4450813		Bracket, Handle				$ 24.20
5	W10276642		Screw (4)   (Replaces: 4451040)				$ 6.41
6	4450836		Seal, Top		Appelez-nous	-
7	4450838		Seal, Side (2)		Appelez-nous	-
8	4450689		Glass, Outer Door		Appelez-nous	-
9	W10276642		Screw (4)   (Replaces: 4449746)				$ 6.41
9	4448405		Handle, Door		Appelez-nous	-
10	4450863		Retainer, Glass		Appelez-nous	-
