Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 C8987105 Seal, Door Dike Appelez-nous -
2 C8982801 Retainer, Door Liner Appelez-nous -
3 10300601WQ Assy, Fz Dr Foam Appelez-nous -
3 10300601LQ Assy, Frz Door (almond) Appelez-nous -
4 D7783710 Bucket Fz. Door Appelez-nous -
5 10359702 Gasket (w Frz Dr) Appelez-nous -
6 D7828403 Inner Door Frz Appelez-nous -
7 D7828601 Retainer, Door Liner Appelez-nous -
8 M0219730 Screw Special Order $ 7.65

9 B0523562 Insul. By The Ft. Appelez-nous -
10 10169402 Retainer, Package Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

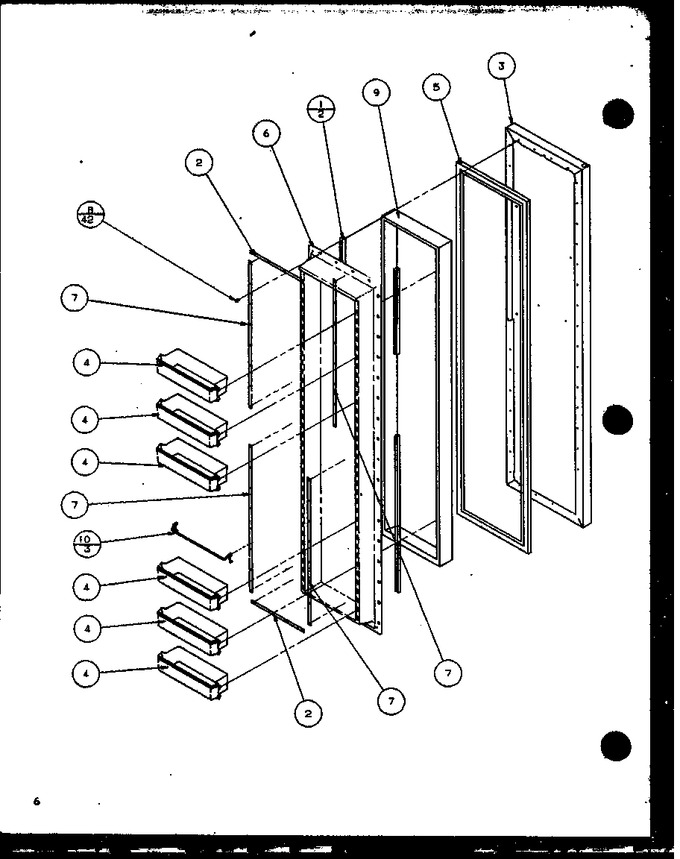

Diagram for SZ22ML (BOM: P1120607W L)
