01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill, Drain And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)

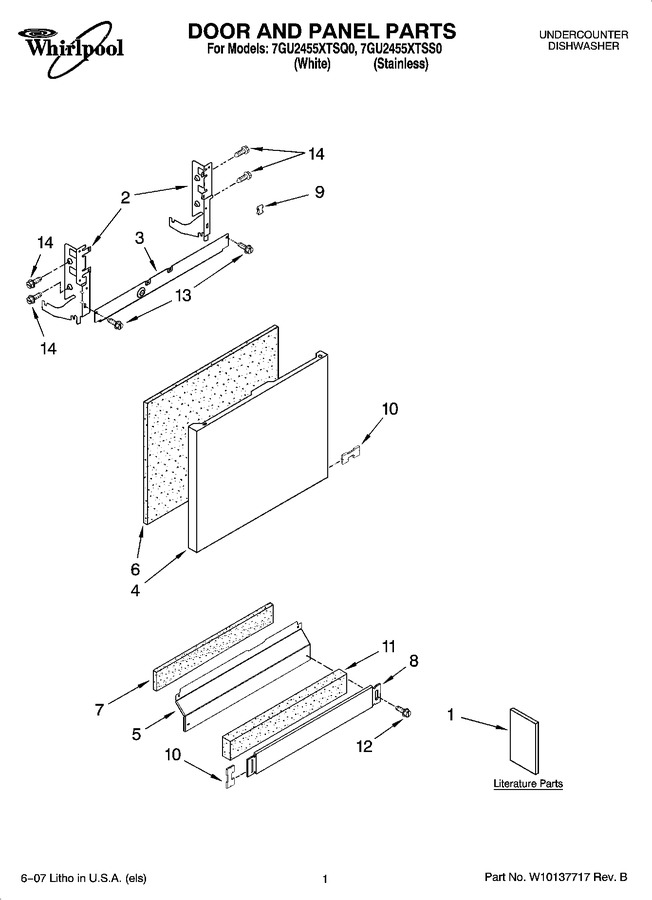

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10102745		Guide, Use & Care		Appelez-nous	-
1	W10102727		Tech Sheet		Appelez-nous	-
1	W10102728		Instructions, Installation		Appelez-nous	-
2	W11806566		Arm, Hinge (left)   (Replaces: 8534858)			Immediately	$ 66.52
2	W11613572		Arm, Hinge (right)   (Replaces: 8534857)			Immediately	$ 78.37
3	8268983		Stiffener, Door				$ 38.77
4	W10301577		Panel Front (includes Item 10) (stainless)   (Replaces: W10137625)				$ 365.45
4	W10073210		Panel Front (includes Item 10) (white)		Appelez-nous	-
5	W11763736		Access Panel (includes Item 7) (black)   (Replaces: 8558260)			Immediately	$ 38.79
5	W11763739		Access Panel (includes Item 7) (white)   (Replaces: 8558261)				$ 38.79
6	WPW10073520		Insulation, Door   (Replaces: 8268580)				$ 91.65
7	W10831329		Insulation, Access Panel   (Replaces: W10073540)			Immediately	$ 40.71
8	W10871196		Toe Panel (includes Items 10 & 11) (black)   (Replaces: 8558252)				$ 165.75
8	WPW10586591		Toe Panel (includes Items 10 & 11) (white)   (Replaces: 8558253)				$ 309.39
9	8269740		Clip, Grounding				$ 6.21
10	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.68
11	W10831329		Insulation, Toe Panel   (Replaces: W10073550)			Immediately	$ 40.71
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 7.53
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 7.75
13	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.85
14	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.00
