SZ25MP2L (BOM: P1154904W L) | Leon's : Appliance Model Lookup

SELECT A DIAGRAM

Diagram for 01 - Drain Rollers And Cabinet Back

01 - Drain Rollers And Cabinet Back

Diagram for 02 - Fz Door

Diagram for 03 - Fz Door

Diagram for 04 - Fz Evap And Air Handling

04 - Fz Evap And Air Handling

Diagram for 05 - Fz Shelving And Ref Light

05 - Fz Shelving And Ref Light

Diagram for 06 - Machine Compartment - Pansonic Comp

06 - Machine Compartment - Pansonic Comp

Diagram for 07 - Ref

Diagram for 08 - Ref Door

Diagram for 09 - Ref Door

Diagram for 10 - Ref Shelving And Drawers

10 - Ref Shelving And Drawers

Diagram for 11 - Rollers And Back Unit

11 - Rollers And Back Unit

New Model Search:

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8987105		Seal, Door Dike		Appelez-nous	-
4	C8982801		Retainer, Door Liner		Appelez-nous	-
5	10300602WQ		Assy. Frz. Door		Appelez-nous	-
5	10300602LQ		Fz Dr Foam As Cfc 11		Appelez-nous	-
6	D7783710		Bucket Fz. Door		Appelez-nous	-
8	10359702		Gasket (w Frz Dr)		Appelez-nous	-
9	D7828403		Inner Door Frz		Appelez-nous	-
10	D7828601		Retainer, Door Liner		Appelez-nous	-
11	M0219730		Screw				$ 7.65
12	10096901		Panel Black Glass		Appelez-nous	-
13	10169402		Retainer, Package		Appelez-nous	-
14	B0523562		Insul. By The Ft.		Appelez-nous	-
15	R0195044		Tape, Adhesive 9 Ft Roll		Appelez-nous	-

View Diagram in Separate Window Print Part List

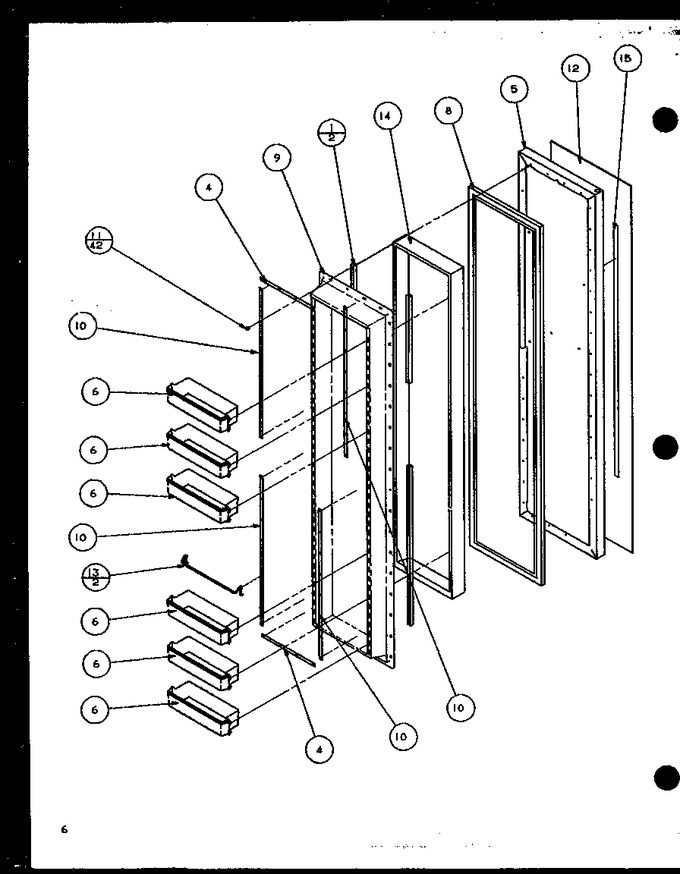

Diagram for SZ25MP2L (BOM: P1154904W L)
