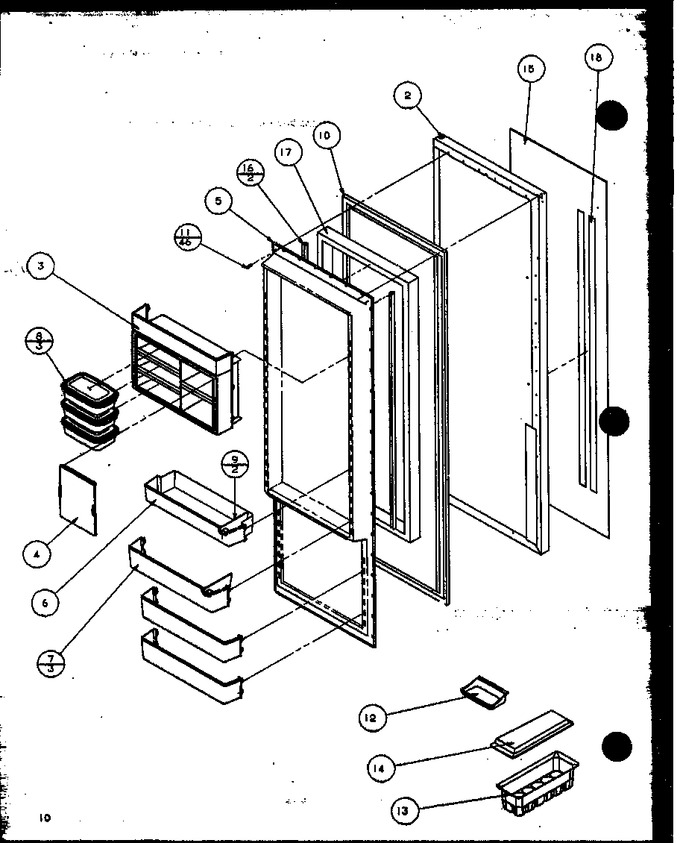

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	10284101LQ		Assy, Ref Door (almond)		Appelez-nous	-
2	10284101WQ		Ref. Door Assy.		Appelez-nous	-
3	D7781205		Module-dairy		Appelez-nous	-
4	D7781318		Door Dairy		Appelez-nous	-
5	D7828203		Inner Door, Ref		Appelez-nous	-
6	D7783314		Bucket-ref Door		Appelez-nous	-
7	D7783414		Shelf, Referig.door		Appelez-nous	-
8	D7806405		Container Sec. Ser.		Appelez-nous	-
9	D7814605		Snugger-dr Shelf		Appelez-nous	-
10	10359701		Gasket, Door (w Ref)		Appelez-nous	-
11	M0219730		Screw				$ 7.65
12	10310901		Tray, Butter		Appelez-nous	-
13	D7695615		Bucket, Egg		Appelez-nous	-
14	D7805908		Cover, Egg Bucket		Appelez-nous	-
15	10096904		Panel Black Glass		Appelez-nous	-
16	C8987104		Seal, Door Dike		Appelez-nous	-
17	B0523562		Insul. By The Ft.		Appelez-nous	-
18	M0275163		Tape Per Roll		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
