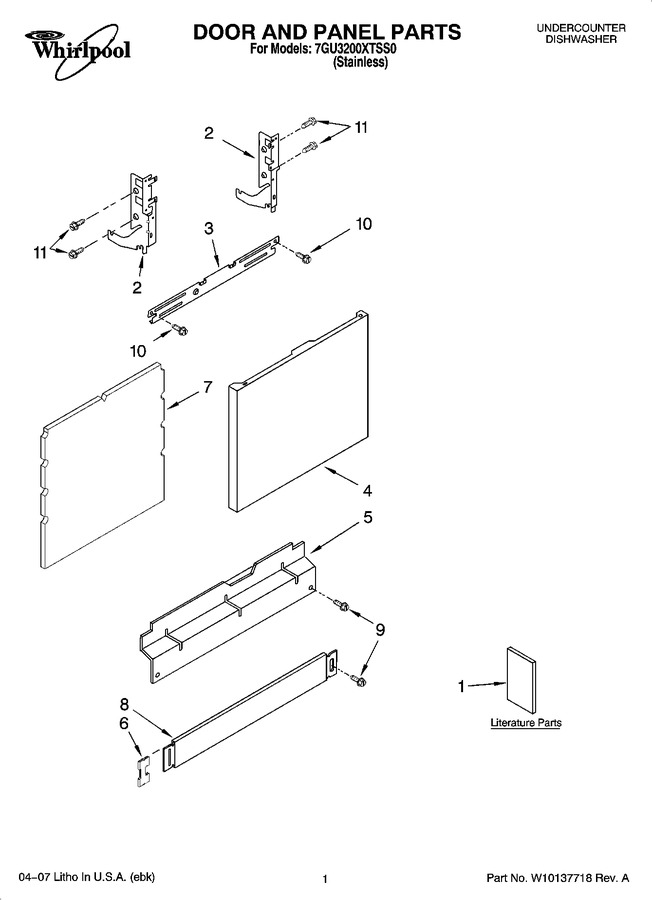

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill, Drain And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10102729		Instructions, Installation		Appelez-nous	-
1	W10102745		Guide, Use & Care		Appelez-nous	-
1	W10102727		Tech Sheet		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 130.98
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 130.98
3	8268983		Stiffener, Door				$ 38.77
4	W10301577		Panel Front (stainless)   (Replaces: 8269845)				$ 365.45
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 38.79
6	WP8269016		Clip, Grounding   (Replaces: 8269016)				$ 10.68
7	WPW10073520		Insulation, Door   (Replaces: 8542577)				$ 91.65
8	W10871196		Toe Panel (includes Item 6) (black)   (Replaces: 8573286)				$ 165.75
9	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 7.75
10	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
11	WP3400071		Screw (2)   (Replaces: 3400071)				$ 7.82
