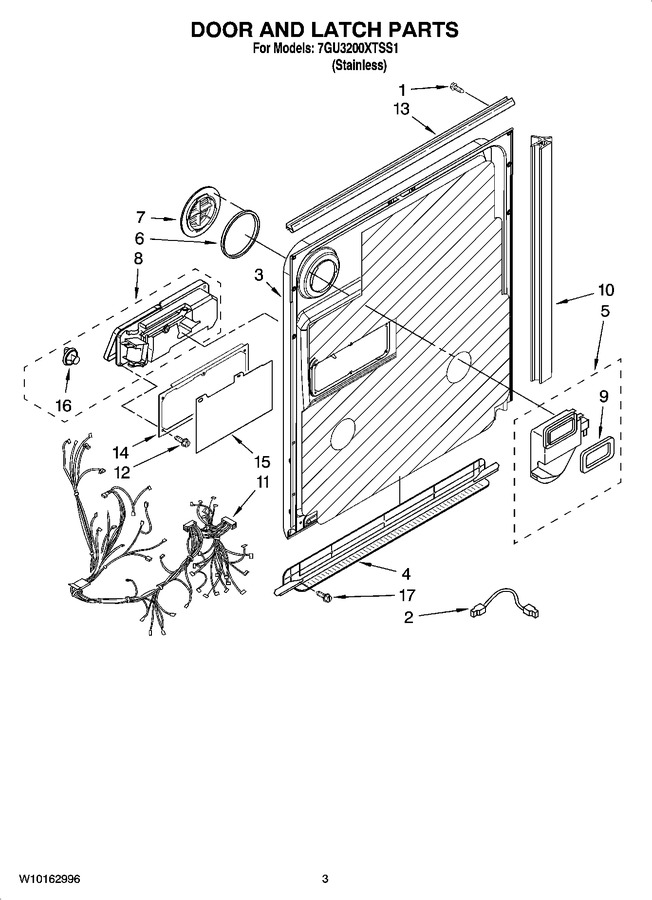

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw, Door (Replaces: 3369051) |
|
Immediately | $ 7.76 | ||||
| 2 | 8545608 | Harness, Vent Motor |
|
$ 152.37 | |||||
| 3 | W10084289 | Inner Door Mastic Assembly (also Order Item 6) |
|
$ 146.08 | |||||
| 4 | WP8268937 | Inlet, Air (Replaces: 8268937) |
|
Immediately | $ 58.29 | ||||
| 5 | WPW10164259 | Vent Assembly (also Order Item 6) (Replaces: 8572583) |
|
$ 198.95 | |||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 63.50 | ||||
| 7 | WP8545536 | Deflector, Vent (also Order Item 6) (Replaces: 8545536) |
|
$ 79.32 | |||||
| 8 | WPW10199696 | Dispenser, Assembly (Replaces: 8565815) |
|
$ 174.06 | |||||
| 9 | WP8269258 | Seal. Front (Replaces: 8269258) |
|
Immediately | $ 92.25 | ||||
| 10 | 8574160 | Seal. Side |
|
$ 88.84 | |||||
| 11 | W10071150 | Wiring Harness Main |
|
$ 320.16 | |||||
| 12 | WPW10177098 | Screw (Replaces: 8281154) |
|
Immediately | $ 7.64 | ||||
| 13 | WP8535660 | Seal,console/door (Replaces: 8535660) |
|
$ 177.15 | |||||
| 14 | WPW10462232 | Bracket, Dispenser (Replaces: 8535637) |
|
$ 36.04 | |||||
| 15 | WP8531865 | Shield, Dispenser (Replaces: 8531865) |
|
$ 107.76 | |||||
| 16 | WP8558307 | Cap, Rinse Aid (Replaces: 8558307) |
|
Immediately | $ 21.27 | ||||
| 17 | W11631670 | Screw (Replaces: 8281217) |
|
$ 14.02 |
