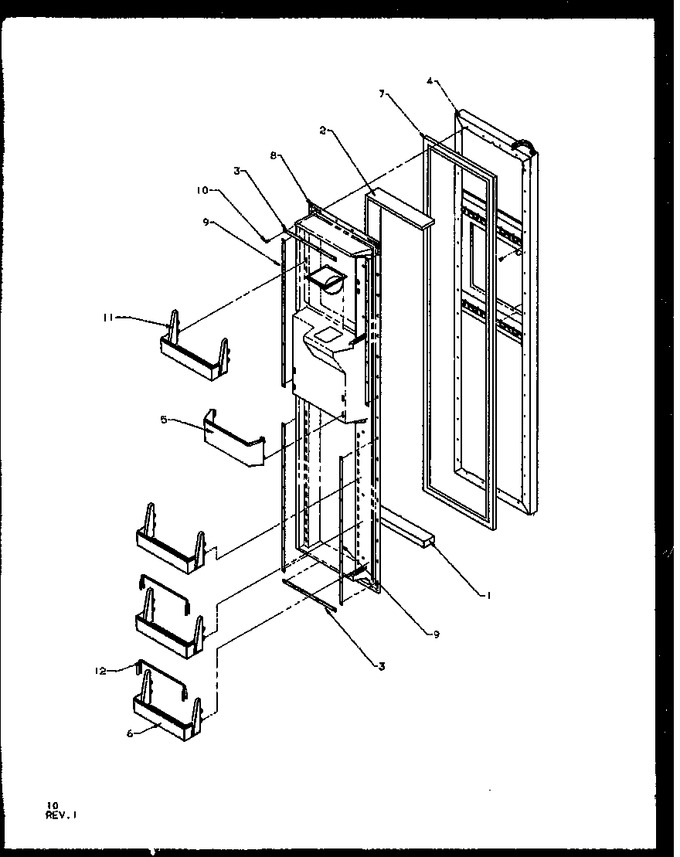

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
2	B0523562		Insul. By The Ft.		Appelez-nous	-
3	C8982801		Retainer, Door Liner		Appelez-nous	-
4	10547601L		Assy Frz Dr Fm Sxs		Appelez-nous	-
4	10547601G		Ass`y, Frz Door (gold)		Appelez-nous	-
4	10547601W		Assy Frz Dr Fm Sxs		Appelez-nous	-
5	10534703		Shelf, Frz. Dr. Half		Appelez-nous	-
6	10521703		Bucket, Frz. Dr		Appelez-nous	-
7	10359702		Gasket (w Frz Dr)		Appelez-nous	-
8	10520501		Liner, I/w Frz Dr		Appelez-nous	-
9	D7828601		Retainer, Door Liner		Appelez-nous	-
10	M0219730		Screw				$ 7.65
11	10525503		Shelf, Freezer Door		Appelez-nous	-
12	10237602		Retainer, Package		Appelez-nous	-
