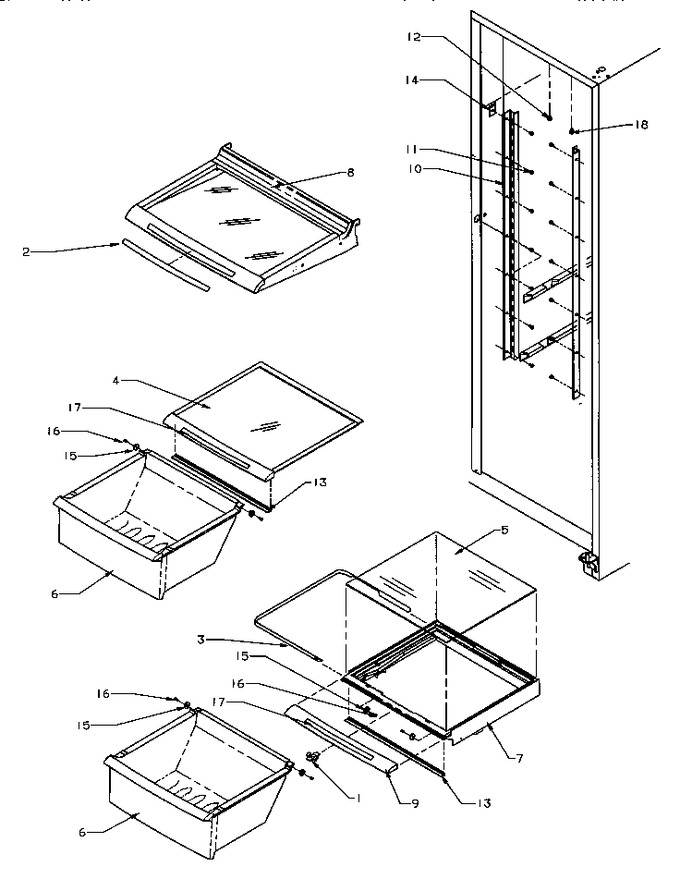

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10852501		Slide, Crisper/deli		Appelez-nous	-
2	10954013		Insert, Shelf		Appelez-nous	-
3	10882701		Band, Crisper		Appelez-nous	-
4	10783102		Shelf, Top Crisper		Appelez-nous	-
5	Y10370066		Glass, Shelf		Appelez-nous	-
6	10783201		Pan,crisper		Appelez-nous	-
7	10782901		Frame,crisper		Appelez-nous	-
8	10809601		Shelf, Full Stat		Appelez-nous	-
9	10872201		Trim, Crisper Frt		Appelez-nous	-
10	D7789808		Ladder, Cantilever		Appelez-nous	-
10	D7789809		Ladder, Cantilever		Appelez-nous	-
11	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
12	M0580007		Grommet, Screw		Appelez-nous	-
13	10968801		Seal-crisp Front		Appelez-nous	-
14	C8992302		Brkt-control Cover		Appelez-nous	-
15	10481001		Roller, Pan				$ 10.99
16	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
17	10954012		Insert, Shelf		Appelez-nous	-
18	M0581001		Grommet, Screw		Appelez-nous	-
NI	10882803		Assy, Crisper Frame		Appelez-nous	-
NI	10882801		Assy, Crisper Frame		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
