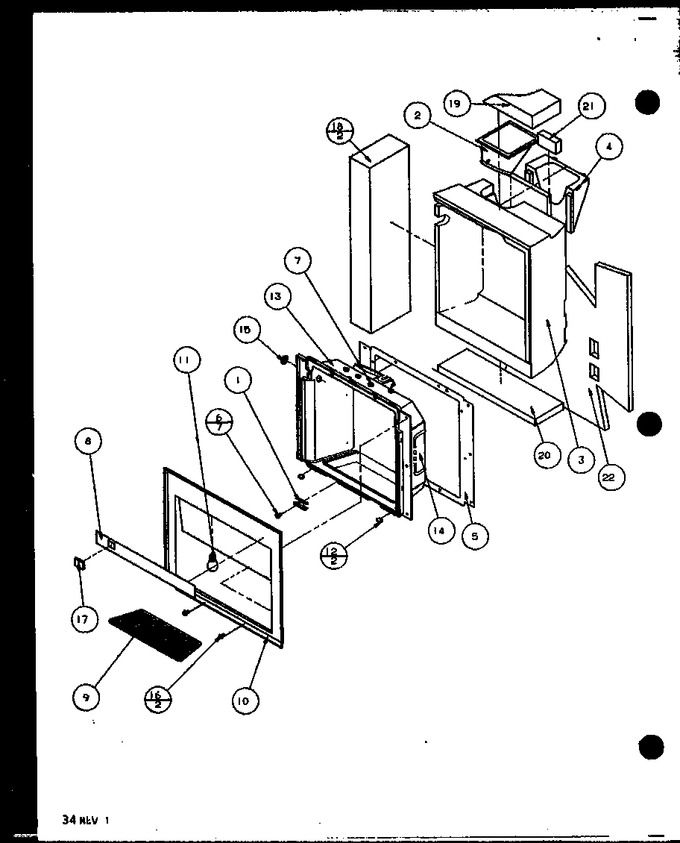

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8992901		Clip		Appelez-nous	-
2	D7750702		Ice, Chute		Appelez-nous	-
3	D7789602		Insulation I & W Cav.		Appelez-nous	-
4	D7790901		Insul I & W Cavity		Appelez-nous	-
5	D7791001		Gasket-cavity		Appelez-nous	-
6	M0216517		Screw		Appelez-nous	-
7	M0274701		Retainer, Ring		Appelez-nous	-
8	D7842222		Membrane Facade L		Appelez-nous	-
8	D7842221		Membrane,facade (white)		Appelez-nous	-
9	D7750603		Grille, Sump (white)		Appelez-nous	-
9	D7750605		Grille, Sump L		Appelez-nous	-
10	D7877525		Facade, Dispenser Al		Appelez-nous	-
10	D7877524		Facade, Dispenser (white)		Appelez-nous	-
11	W10857122		Light Bulb   (Replaces: M0360001)				$ 14.52
12	B8390301		Clip, Facade		Appelez-nous	-
13	D7750013		Cavity, Dispenser		Appelez-nous	-
13	D7750014		Cavity-dispenser, Almond		Appelez-nous	-
14	10176101		Heater-cavity		Appelez-nous	-
15	M0311401		Plug Button		Appelez-nous	-
16	M0219614		Screw K		Appelez-nous	-
16	M0219640		Screw		Appelez-nous	-
17	10176301		Cap-silver Switch		Appelez-nous	-
18	10270904		Insulation Batt		Appelez-nous	-
19	B5629053		Insulation Batt		Appelez-nous	-
20	B5629054		Insulation Batt		Appelez-nous	-
21	B5629058		Insulation Batt		Appelez-nous	-
22	10220201		Insulation Batt		Appelez-nous	-
