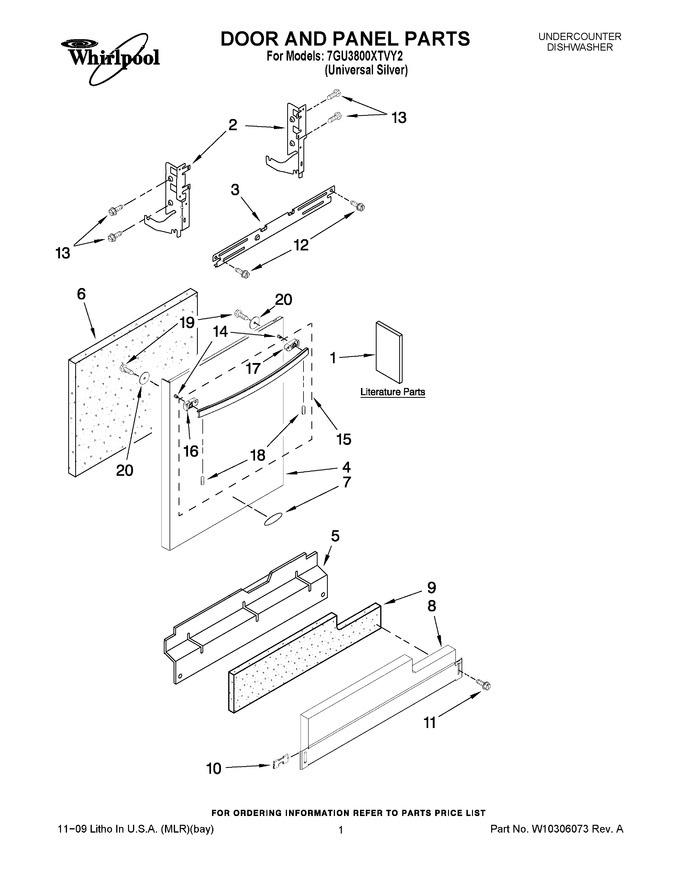

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10102729 | Instructions, Installation |
|
- | |||||
| 1 | W10205904 | Guide, Use & Care |
|
- | |||||
| 1 | W10130990 | Tech Sheet |
|
- | |||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10142938 | Panel Front (stainless) (includes Items 7 And 14) |
|
$ 170.59 | |||||
| 5 | W11763736 | Access Panel Black (Replaces: 8573255) |
|
Immediately | $ 42.25 | ||||
| 6 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 7 | W10175320 | Name Plate |
|
$ 41.71 | |||||
| 8 | W10871196 | Toe Panel (includes Items 9 & 10) (black) (Replaces: W10205336) |
|
$ 174.04 | |||||
| 9 | W10831329 | Insulation Toe Panel (Replaces: W10073540) |
|
Immediately | $ 43.30 | ||||
| 10 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 11.21 | |||||
| 11 | WP302868 | Screw (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 12 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 13 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 14 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 15 | W10142998 | Handle |
|
$ 91.71 | |||||
| 16 | W10164250 | Endcap, Left Hand |
|
$ 90.92 | |||||
| 17 | W10164249 | Endcap, Right Hand |
|
$ 49.32 | |||||
| 18 | WP8534008 | Setscrew (Replaces: 8534008) |
|
$ 9.37 | |||||
| 19 | W10123421 | Screw |
|
$ 12.83 | |||||
| 20 | W10142904 | Plate-backing |
|
$ 50.57 |
