View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

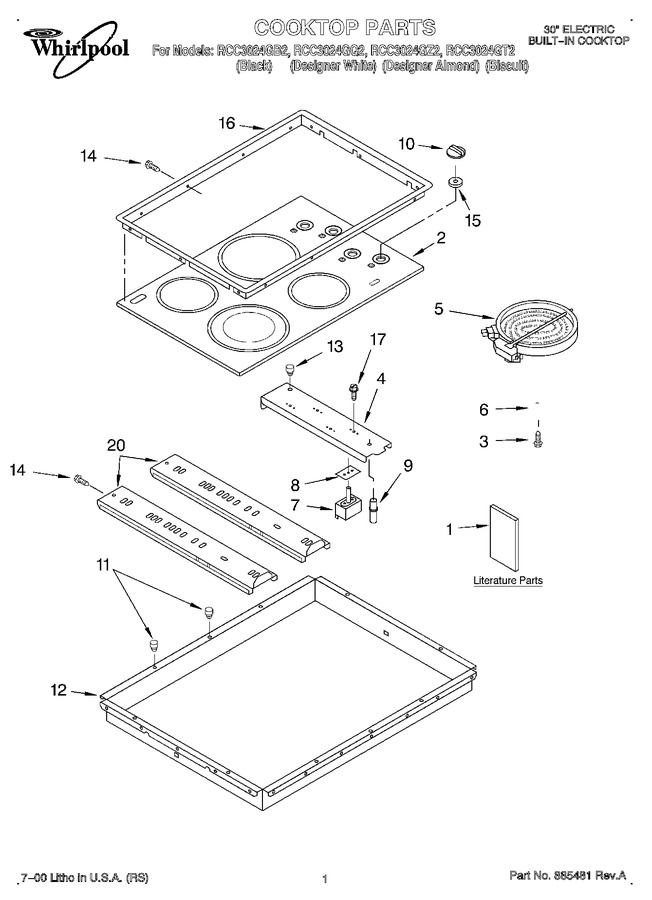

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT3191771 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3191772 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT8284719 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | 3191843 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 3191189 | Cooktop, Glass (designer White) |
|
- | |||||
| 2 | 3191190 | Cooktop, Glass (designer Almond & Biscuit) |
|
- | |||||
| 3 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 8.01 | |||||
| 4 | 3191310 | Bracket, Switch Mounting |
|
- | |||||
| 5 | W10823696 | Element, Surface (2500 W - Lf) (Replaces: 8272565) |
|
Immediately | $ 214.25 | ||||
| 5 | W10823711 | Element, Surface (1200w Lr-rf) (Replaces: 8272567) |
|
Immediately | $ 204.39 | ||||
| 5 | W10823698 | Element, Surface (1800 W - Rr) (Replaces: 8272566) |
|
Immediately | $ 195.12 | ||||
| 6 | 3191791 | Spring, Locator (8) |
|
- | |||||
| 7 | WP3191049 | Switch, Infinite (use W/1200w Left Rear & Right Front Burners) (Replaces: 3191049) |
|
$ 175.29 | |||||
| 7 | WP3191050 | Switch, Infinite (use W/1700w Right Rear Burner) (Replaces: 3191050) |
|
Immediately | $ 174.68 | ||||
| 7 | WP4454541 | Switch, Infinite (use W/2400w Left Front Burner) (Replaces: 4454541) |
|
$ 174.37 | |||||
| 8 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 9 | 3191952 | Light, Indicator |
|
- | |||||
| 10 | 3196233 | Knob, Control (4) (designer Almond) |
|
$ 15.63 | |||||
| 10 | WP3196231 | Knob, Control (4) (biscuit) (Replaces: 8272506) |
|
Immediately | $ 22.00 | ||||
| 10 | WP3196231 | Knob, Control (4) (black) (Replaces: 3196231) |
|
Immediately | $ 22.00 | ||||
| 10 | 3196232 | Knob, Control (4) (designer White) |
|
$ 16.71 | |||||
| 11 | 9750835 | Bumper, Silicone |
|
- | |||||
| 12 | 4455515 | Box, Burner |
|
- | |||||
| 13 | 3191953 | Bumper, Silicone |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 15 | 3182435 | Seal, Switch Shaft (4) |
|
- | |||||
| 16 | 3190942 | Trim Ring, Cooktop (almond) |
|
- | |||||
| 16 | 3193230 | Trim Ring, Cooktop (black) |
|
- | |||||
| 16 | 3193229 | Trim Ring, Cooktop (white) |
|
- | |||||
| 16 | 8284711 | Trim Ring, Cooktop (biscuit) |
|
- | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.89 | |||||
| 20 | WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 7.55 | |||||
| 20 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 20 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 20 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 20 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 20 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 20 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 20 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 20 | 3191048 | Cleaner, Glass |
|
- | |||||
| 20 | 4455280 | Wiring Harness Surface Unit |
|
- | |||||
| 20 | 3192170 | Harness, Conduit |
|
- | |||||
| 20 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 20 | 3191515 | Rail, Element |
|
- | |||||
| 20 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| 20 | 3172515 | Hardware, Mtg. |
|
- | |||||
| 20 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 20 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 20 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 20 | 242823 | Wire (14 Ga. 150 C Green) |
|
- |
