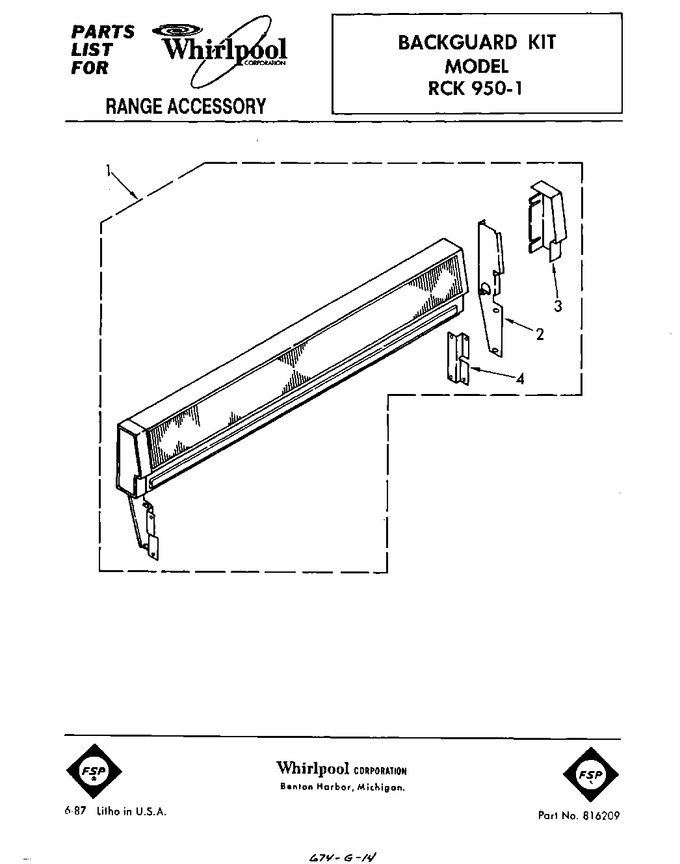

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 816203 | Panel, Backguard |
|
- | |||||
| 2 | 816205 | Support, Backguard (l.h.) |
|
- | |||||
| 2 | 877903 | Support, Backguard (screw, 10-24 X 3/8 (4)) |
|
- | |||||
| 2 | 816204 | Support, Backguard (r.h.) |
|
$ 507.47 | |||||
| 3 | 816206 | End Cap, (l.h.) |
|
- | |||||
| 3 | WP965173 | End Cap, (screw, 8-18 X 3/8 (4)) (Replaces: 816208) |
|
Immediately | $ 10.68 | ||||
| 3 | 816207 | End Cap, (r.h.) |
|
- | |||||
| 4 | 877729 | Bracket, Support (right Side) |
|
- | |||||
| 4 | 877903 | Bracket, Support (screw, 10-24 X 3/8 (4)) |
|
- | |||||
| 4 | 877730 | Bracket, Support (left Side) |
|
- | |||||
| LIT816209 | List, Repair Parts |
|
- |
