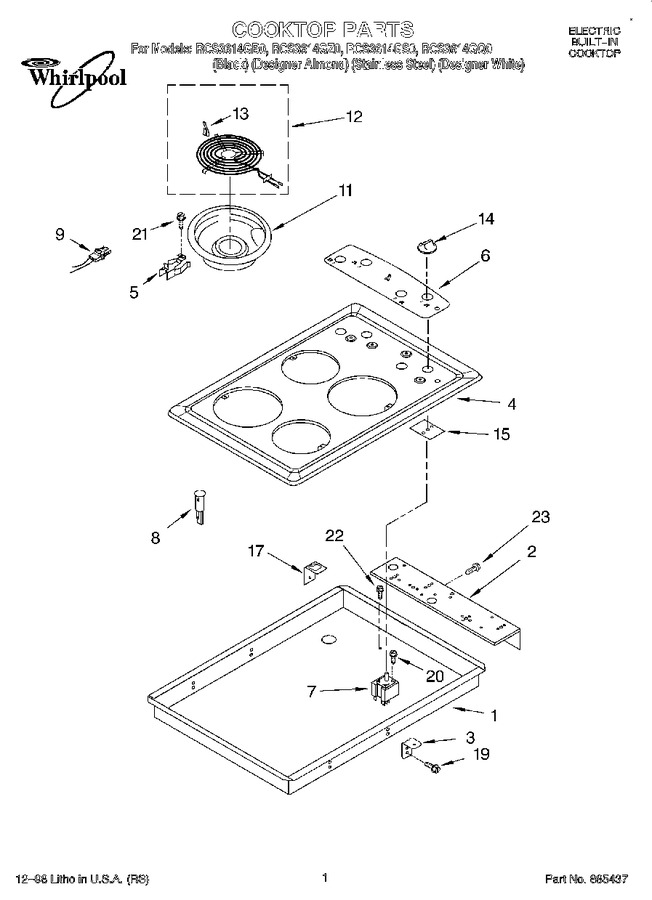

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192446 | Burner Box |
|
- | |||||
| 2 | 3192110 | Bracket, Switch Mounting |
|
- | |||||
| 3 | 3192454 | Bracket, Mounting Cooktop |
|
- | |||||
| 4 | 3191175 | Cooktop (stainless Steel) |
|
- | |||||
| 4 | 3191397 | Cooktop (designer White) |
|
- | |||||
| 4 | 3191396 | Cooktop (black) |
|
- | |||||
| 4 | 3191398 | Cooktop (designer Almond) |
|
- | |||||
| 5 | WP9760411 | Clip, Receptacle (Replaces: 3195210) |
|
$ 8.56 | |||||
| 6 | 3191228 | Panel, Control (black) |
|
- | |||||
| 6 | 3191229 | Panel, Control (white) |
|
- | |||||
| 6 | 3191230 | Panel, Control (almond) |
|
- | |||||
| 7 | WP3191471 | Switch Infinite (use W/6`` Element (blue Shaft)) (Replaces: 3191471) |
|
$ 198.96 | |||||
| 7 | WP3191472 | Switch Infinite (use W/8`` Element (silver Shaft)) (Replaces: 3191472) |
|
$ 175.98 | |||||
| 8 | WP4456181 | Light, Indicator (2) (Replaces: 3191491) |
|
$ 111.25 | |||||
| 9 | 814399 | Receptacle, Elmnt. |
|
Immediately | $ 43.19 | ||||
| 11 | W10196405RW | Pan, Surface (8`` Pan (2)) (Replaces: 3195209) |
|
Immediately | $ 21.82 | ||||
| 11 | WPW10196406 | Pan, Surface (6`` Pan (2)) (Replaces: 3195208) |
|
Immediately | $ 13.39 | ||||
| 12 | WP3191454 | Unit, Surface (2) 8`` (240v) (Replaces: 3191454) |
|
$ 190.90 | |||||
| 12 | WP660532 | Unit, Surface (2) 6`` (240v) (Replaces: 8053266) |
|
Immediately | $ 41.00 | ||||
| 13 | WP3195917 | Clip, Element (Replaces: 3195917) |
|
Immediately | $ 8.12 | ||||
| 14 | 3196232 | Knob, Control (4) (white) |
|
$ 16.71 | |||||
| 14 | 3196233 | Knob, Control (4) (almond) |
|
$ 15.63 | |||||
| 14 | WP3196231 | Knob, Control (4) (black) (Replaces: 3196231) |
|
Immediately | $ 22.00 | ||||
| 15 | 3183956 | Seal, Switch Shaft (4) |
|
$ 48.77 | |||||
| 17 | 4454839 | Bracket, Installation |
|
- | |||||
| 19 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 20 | 3400855 | Screw, 8-32 X 1/4 |
|
- | |||||
| 21 | WP12990527 | Screw, 8-18 X 3/8 (Replaces: 3400843) |
|
Immediately | $ 8.76 | ||||
| 22 | WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 7.55 | |||||
| 23 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| LIT3191535 | Use & Care Guide |
|
- | ||||||
| LIT3191538 | Installation Instructions |
|
- | ||||||
| 3188533 | Grommet, Conduit |
|
- | ||||||
| 3191506 | Bushing, Conduit |
|
- | ||||||
| 3184020 | Ground Wire (Replaces: 4454384) |
|
$ 86.92 | ||||||
| 3191955 | Conduit Assembly |
|
- | ||||||
| 3192245 | Harness, Wire (light) |
|
- | ||||||
| 3191266 | Harness, Wiring (main) |
|
- | ||||||
| LIT3192107 | Wiring Diagram |
|
- |
