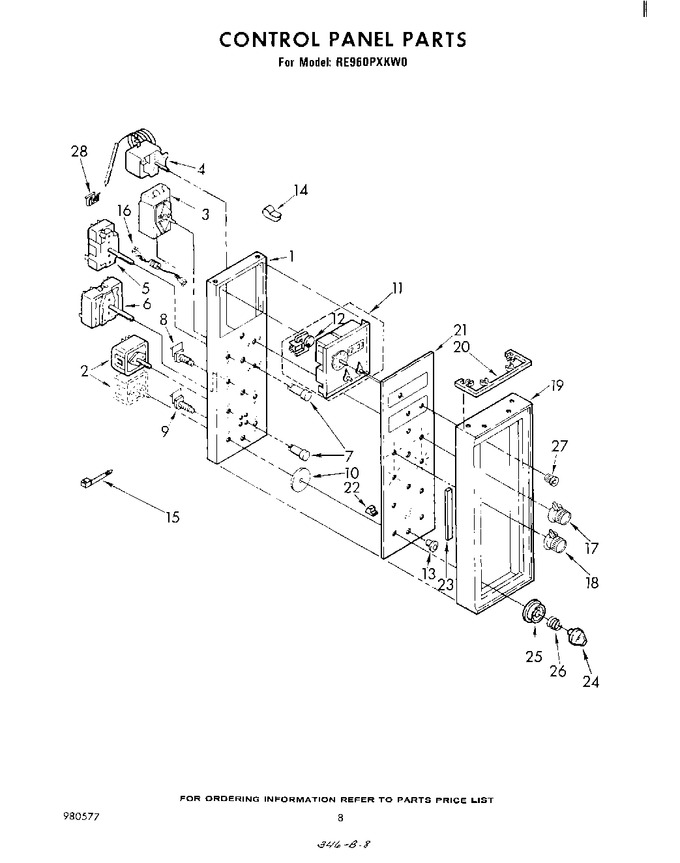

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328247		Panel, Control		Appelez-nous	-
2	308475		Switch, Infinite (4)		Appelez-nous	-
2	308119		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
3	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
3	310022		Thermostat, Oven (pyro)		Appelez-nous	-
4	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
4	308787		Thermostat (upper Oven)		Appelez-nous	-
5	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
5	310350		Switch, Selector (4 Position)		Appelez-nous	-
6	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
6	310007		Switch, Selector (pyro)		Appelez-nous	-
7	311550		Light, Indicator 250v (8)		Appelez-nous	-
8	328707		Knob, Selector		Appelez-nous	-
8	308830		Switch, Fluorescent Light		Appelez-nous	-
9	255912		Nut, 3/8 X 27		Appelez-nous	-
9	308829		Switch, Oven Light		Appelez-nous	-
10	308352		Skirt, Knob (4)		Appelez-nous	-
11	WP488627		Screw, 8a X 1/2 (4)   (Replaces: 338156)				$ 7.57
11	WP486754		Screw, 6-32 X 1/4 (3)   (Replaces: 246119)				$ 7.50
11	310426		Timer, Digital (includes Illus. 12)		Appelez-nous	-
12	308594		Motor, Timer		Appelez-nous	-
13	308784		Bezel, Switch (2)		Appelez-nous	-
14	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.87
14	488946		Strain Relief   (Replaces: 308607)				$ 20.45
14	308609		Strain, Relief		Appelez-nous	-
14	308611		Strain Relief		Appelez-nous	-
14	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.85
14	WP308605		Strain, Relief   (Replaces: 308605)				$ 11.20
15	WPW10339879		Cable Tie (3)   (Replaces: 309330)				$ 7.90
16	328923		Resistor & Terminal Assembly		Appelez-nous	-
17	328709		Knob, Thermostat		Appelez-nous	-
19	WP488627		Screw (2)   (Replaces: 342055)				$ 7.57
19	311602		Frame, Control Panel		Appelez-nous	-
20	254225		Screw, 8bt X 1/4 (3)		Appelez-nous	-
20	308660		Filler, Control Panel		Appelez-nous	-
21	311601		Glass, Control Panel		Appelez-nous	-
22	306393		Retainer, Glass (10)		Appelez-nous	-
23	308298		Seal, Foam		Appelez-nous	-
24	308346		Knob, Control		Appelez-nous	-
25	308350		Bezel Control Knob (4)		Appelez-nous	-
26	308348		Spring, Bezel (4)		Appelez-nous	-
27	309553		Knob, Timer		Appelez-nous	-
28	257806		Speed Clip		Appelez-nous	-
28	161463		Screw, 10a X 2		Appelez-nous	-
