Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7616690 Trim-fz Shelf Appelez-nous -
2 D7781415 Basket Freezer Clear Appelez-nous -
3 D7781504 Freezer Shelf Appelez-nous -
4 D7788314 Shelf Fz Wire Appelez-nous -
5 D7788316 Shelf Freezer Appelez-nous -
6 10049921 Trim, Front Shelf Appelez-nous -
7 C8913609 Trim Appelez-nous -
8 C8973801 Support, Frz Shelf Special Order $ 8.35

9 C8973403 Socket-light Appelez-nous -
10 D7760102 Housing Frz Light Appelez-nous -
11 10014707 Shield, Light Appelez-nous -
12 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 39.09

13 D7620104 Rack, Ice Appelez-nous -
14 M0270508 Washer Appelez-nous -
15 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

16 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

17 Y00000000 See Note Add-on Ice Maker Assembly Appelez-nous -
18 C8976301 Barrier Appelez-nous -
19 67005375 Glide-l Fz   (Replaces: D7849903) Special Order $ 312.82

20 D7849904 Glide, Freezer Rh Appelez-nous -
21 M0213529 Screw Appelez-nous -
22 C8973701 Plug, Frz Shelf Support Appelez-nous -
23 M0580007 Grommet, Screw Appelez-nous -
24 10281301 Harness-outer Liner Appelez-nous -
25 D7808602 Socket, Dual Lamp Appelez-nous -
26 C8778301 Insulation Appelez-nous -
27 10014708 Shield, Light Appelez-nous -
28 D7297603 Cover, Light Sw Appelez-nous -
29 D7716404 Housing-ref Light Appelez-nous -
30 B5733302 Clip, Ground Appelez-nous -
31 WP841180A Tray, Ice   (Replaces: D7725401) In-Stock Immediately $ 47.84

32 D7620029 Bin-ice Appelez-nous -
33 10270201 Housing, Light Appelez-nous -
34 M0219559 Screw Appelez-nous -
35 A3189337 Gasket Appelez-nous -
36 Y10270101 Cover-light Appelez-nous -
37 WPA3073101 Bulb 120v. 40w.   (Replaces: A3079001) In-Stock Immediately $ 12.72

38 10281601 Socket-light Appelez-nous -
39 10278001 Insulation Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

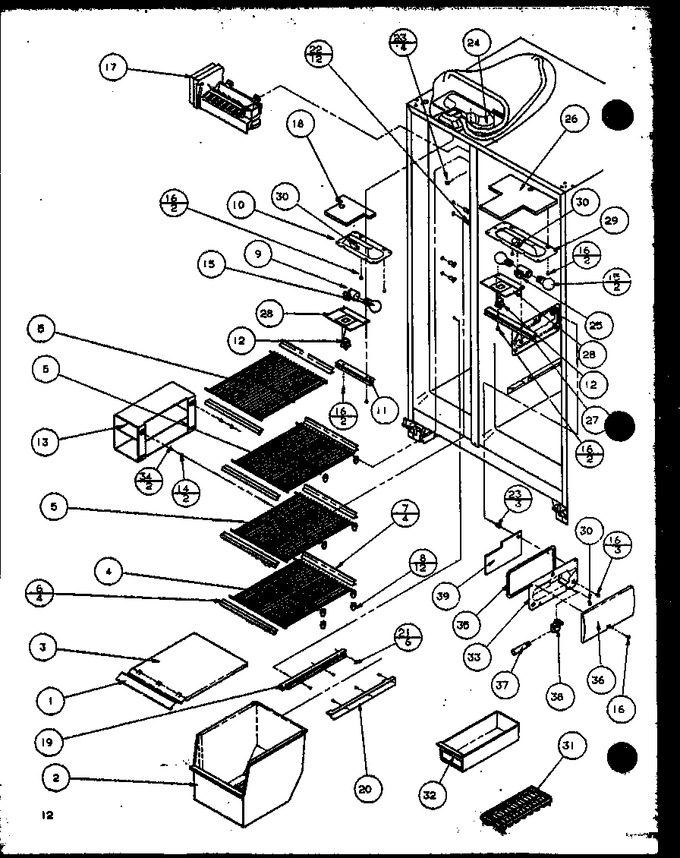

Diagram for SZD27KW (BOM: P1101201W W)
