Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7863001 Inner Pad K Appelez-nous -
2 D7863101 Outer Pad K Appelez-nous -
3 D7826603 Handle Appelez-nous -
4 M0215116 Screw Appelez-nous -
5 WP3400094 Screw   (Replaces: M0253942) Special Order $ 9.26

6 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

7 10161802 Door Stop Appelez-nous -
8 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 7.55

9 M0310308 Plug, Button (wht) Appelez-nous -
10 D7852007 Trim Upper Ref Door K Appelez-nous -
11 D7853802 Trim Center Refr K Appelez-nous -
12 D7792802 Lower Trim Ref Door K Appelez-nous -
13 D7793202 Ref. Trim, Retainer Appelez-nous -
14 10137601 Clip Trim Appelez-nous -
15 10133101 Trim Vertical Appelez-nous -
16 10133201 Trim Ref Door Top Appelez-nous -
17 10133301 Trim, Ref Door Bottom Appelez-nous -
18 W11245710 Screw, Sm (stnls)   (Replaces: M0210417) In-Stock Immediately $ 14.75

19 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

20 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

21 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 7.55

22 10126402 Cover Hinge Black Appelez-nous -
22 10126401 Hinge Cover - Chrome Appelez-nous -
23 10185101 Top Hinge-e Ct Appelez-nous -
24 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 10.58

25 B8389001 Shim, Top Hinge Appelez-nous -
26 B8387701 Shim, Door Closure Appelez-nous -
26 B8387702 Shim, Door Closure Appelez-nous -
27 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

28 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

29 10163602 Rh Bot Hinge-bk E Ct Appelez-nous -
30 B8386701 Kit,btm Hinge Shim Appelez-nous -
30 B8386703 Kit,btm Hinge Shim Appelez-nous -
30 B8386702 Kit,btm Hinge Shim Appelez-nous -
31 M0246258 Screw Appelez-nous -
32 C8984309 Thinplate Door Appelez-nous -
33 M0213815 Screw Appelez-nous -
35 C8972304 Shim Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

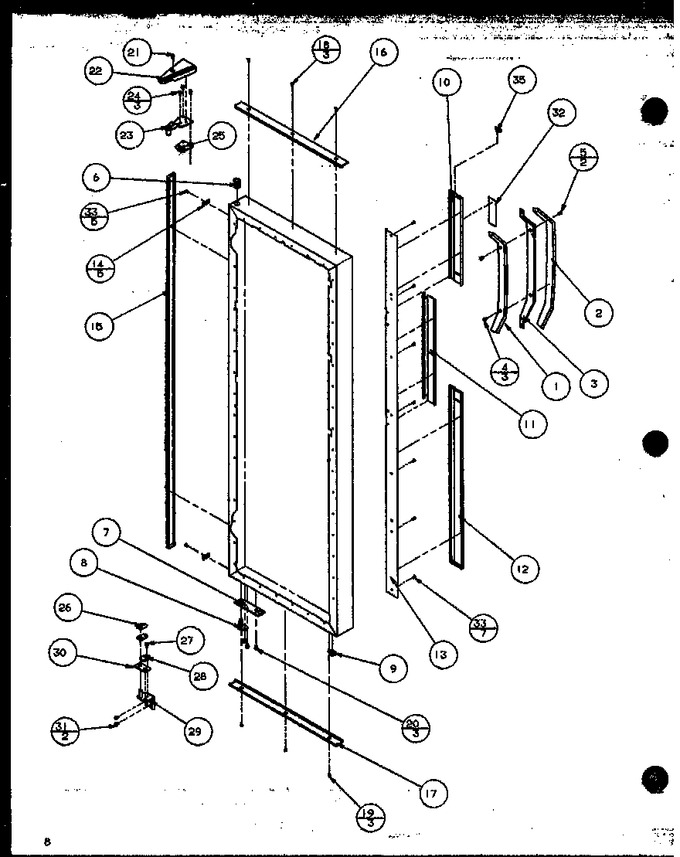

Diagram for SZD27MPL (BOM: P1124306W L)
