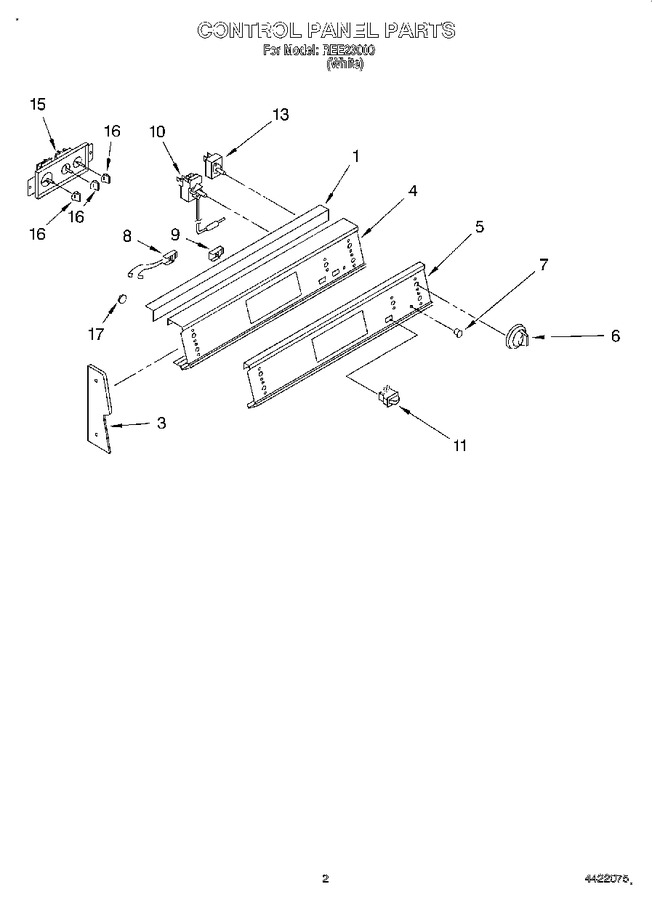

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780492PB		Lamp Cover, Black		Appelez-nous	-
3	9750262FB		End Cap (left)		Appelez-nous	-
3	9750263FB		End Cap (right)		Appelez-nous	-
3	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
4	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
4	3190070		Panel, Control		Appelez-nous	-
5	9752861		Panel, Control (faceplate)		Appelez-nous	-
6	9750272FB		Knobs, Control (5)		Appelez-nous	-
7	WP9750343		Lens, Indicator (3)   (Replaces: 9752589)			Immediately	$ 6.00
8	9780801		Light Module (oven)		Appelez-nous	-
9	313102		Light Module, (burners) (2)				$ 66.48
10	6700G0001		Thermostat, Oven   (Replaces: 9750401)			Immediately	$ 328.86
10	9780268		Screw, (2) 8-32 X 3/16		Appelez-nous	-
11	3191100FB		Switch, Rocker		Appelez-nous	-
13	WP9750638		Infinite Switch (1400w 6``)   (Replaces: 9750638)			Immediately	$ 113.89
13	WP9750641		Infinite Switch (2400w 8``)   (Replaces: 9750641)			Immediately	$ 103.02
13	9780268		Infinite Switch (screw (2) 8-32 X 3/16)		Appelez-nous	-
13	WP3400882		Infinite Switch (screw (8) 8-32 X 3/16)   (Replaces: 3400816)			Immediately	$ 7.55
15	9751121CP		Timer / Clock   (Replaces: 9751121)		Appelez-nous	-
16	424038		Knob, Timer (3)		Appelez-nous	-
17	3190057		Button, Plug		Appelez-nous	-
