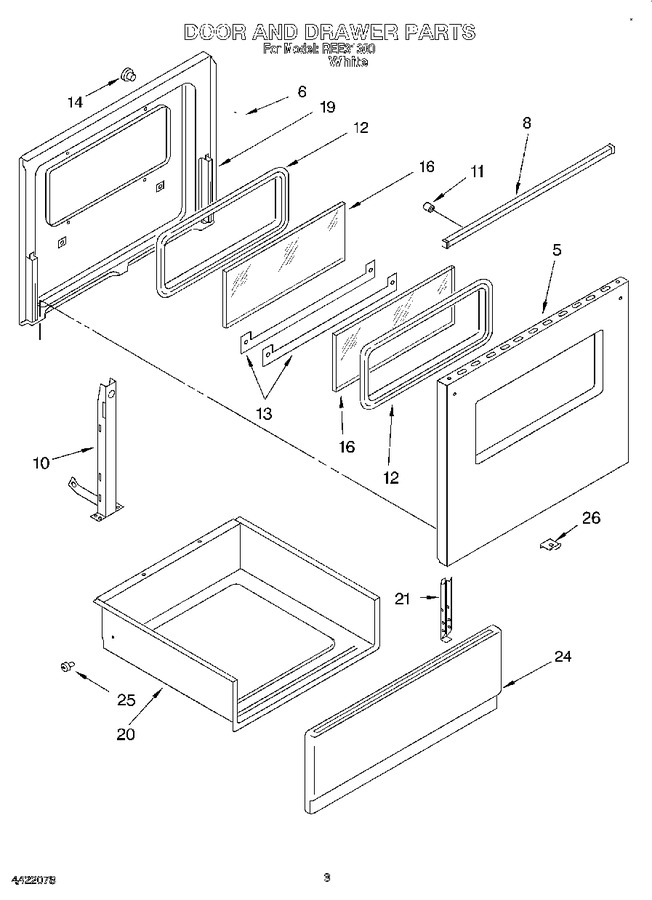

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	9752721GW		Panel, Door		Appelez-nous	-
5	WPW10001180		Screw, (2)   (Replaces: 9750890)				$ 8.94
6	9780271		Screw, (2)		Appelez-nous	-
6	9750676		Retainer, Door (2)		Appelez-nous	-
8	WP3195704		Handle, Door   (Replaces: 3195704)				$ 204.09
10	3149333		Screw (4) 10 X 1/2				$ 5.33
10	9750235		Hinge, Door R Or L		Appelez-nous	-
10	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
11	WPW10001180		Screw, (2) 10-24 X 1/2   (Replaces: 9750890)				$ 8.94
11	WP3196143		Spacer, Handle (r Or L)   (Replaces: 3196143)				$ 7.30
12	9750685		Gasket, Glass		Appelez-nous	-
13	9780271		Screw, (2)		Appelez-nous	-
13	9750894		Retainer, Glass		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 84.79
16	9750686		Glass, Inner-outer		Appelez-nous	-
19	9780671GM		Liner, Door		Appelez-nous	-
19	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
21	9780272		Screw (4) 10 X 1/2		Appelez-nous	-
24	WP90296		Clip   (Replaces: 90296)				$ 8.24
24	9750168PW		Front, Drawer		Appelez-nous	-
25	814229		Roller, Support   (Replaces: 423713)			Immediately	$ 56.92
26	9781502		Spacer, Door (2)		Appelez-nous	-
