SELECT A DIAGRAM

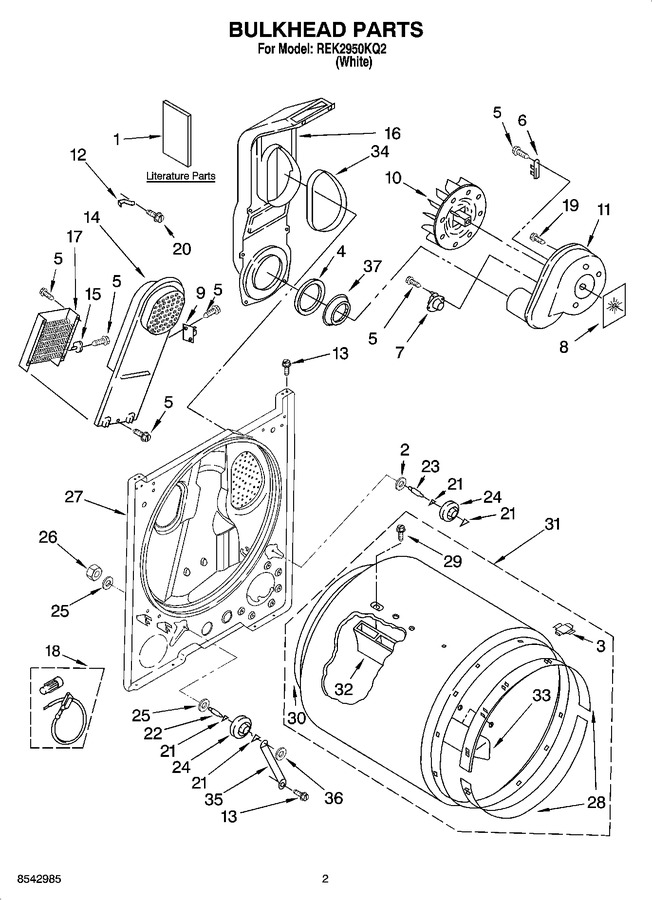

01 - Bulkhead Parts Optional Parts (not Included)


02 - Top And Console Parts


03 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8527799		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8542985		Literature Parts (repair Parts List)		Appelez-nous	-
1	LIT8533207		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
2	WP3388703		Washer-support   (Replaces: 3388703)				$ 7.85
3	8066086		Drum, Hole Plug				$ 11.29
4	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 19.14
5	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
6	WP3392519		Thermal Fuse   (Replaces: 3392519)			Immediately	$ 24.95
7	WP3387134		Thermostat, Internal Bias   (Replaces: 3387134)			Immediately	$ 35.90
8	3394196		Seal, Blower				$ 5.65
9	279816		Thermal Cut-off (includes Illus. 15)   (Replaces: 3977393)			Immediately	$ 60.71
10	WP694089		Wheel, Blower (includes Illus . 8)   (Replaces: 694089)			Immediately	$ 37.66
11	WP8577230		Housing, Blower   (Replaces: 8557384)				$ 186.85
12	279771		Clip   (Replaces: 3398161)				$ 15.05
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
14	WP8541818		Box, Heater   (Replaces: 3397566)				$ 234.81
15	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
15	WP3977767		Thermostat, High Limit   (Replaces: 3977767)			Immediately	$ 26.09
15	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
15	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
15	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
15	N/A		Accessory Parts		Appelez-nous	-
