SELECT A DIAGRAM

01 - Section


02 - Section

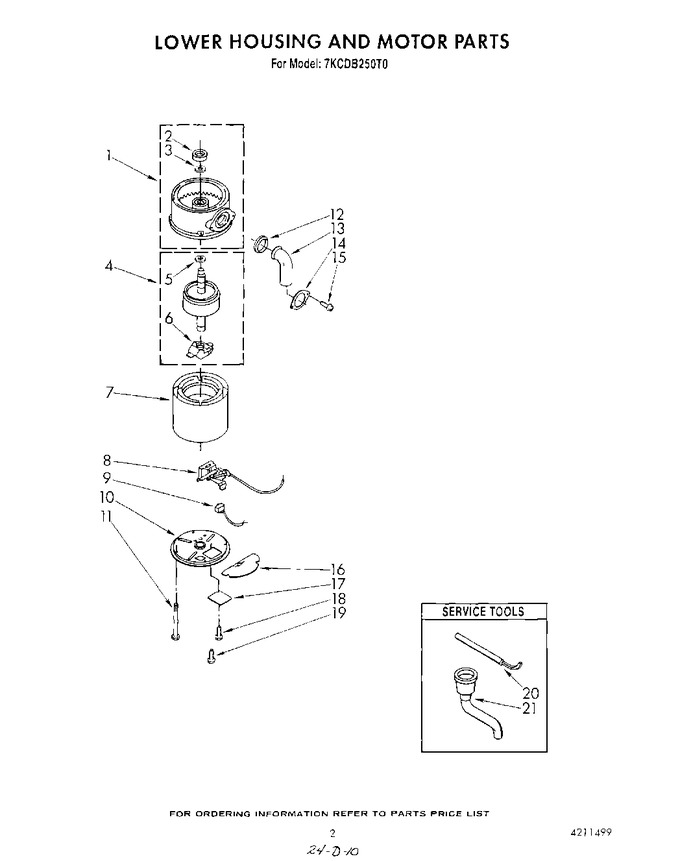

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211313		End Bell Assembly, Upper		Appelez-nous	-
2	4211314		Seal, Water & Oil		Appelez-nous	-
3	4211315		Washer, Thrust		Appelez-nous	-
4	4211485		Rotor & Shaft Assembly		Appelez-nous	-
5	4211321		Washer		Appelez-nous	-
6	4211446		Actuator Assembly, Centrifugal		Appelez-nous	-
7	4211448		Stator Assembly		Appelez-nous	-
8	4211449		Switch Assembly, Start		Appelez-nous	-
9	4211450		Protector, Overload		Appelez-nous	-
10	4211327		End Frame Assembly, Lower		Appelez-nous	-
11	4211352		Bolt, Thru (4)		Appelez-nous	-
12	4211344		Gasket, Tailpipe				$ 5.83
13	4211445		Tailpipe		Appelez-nous	-
14	4211497		Flange, Tailpipe		Appelez-nous	-
15	4211319		Screw, Tailpipe (2)		Appelez-nous	-
16	4211326		Shield, Wire		Appelez-nous	-
17	4211328		Cover, Terminal		Appelez-nous	-
18	WP7101P246-60		Screw   (Replaces: 4211329)				$ 8.24
19	4211330		Screw, Ground		Appelez-nous	-
20	WP8174310		Emergency, Wrench Assembly   (Replaces: 4211435)				$ 22.35
21	4211396		Adapter, Sink Assembly		Appelez-nous	-
	LIT4211432		Guide, Use And Care		Appelez-nous	-
	LIT4211499		Repair Parts List		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
