SELECT A DIAGRAM

01 - 8 Cube Compact Ice Maker


02 - Cabinet Back


03 - Crushed Ice Bucket


04 - Drain And Rollers


05 - Evap And Air Handling


06 - Fz Door


07 - Fz Door Hinge And Trim Parts


08 - Fz Shelving And Ref Light


09 - Ice And Water Cavity


10 - Ice And Water Cavity


11 - Ice Maker


12 - Machine Compartment


13 - Ref Door


14 - Ref Door Hinge And Trim Parts


15 - Ref Shelving And Drawers


16 - Ref Shelving And Drawers


17 - Ref/fz Controls And Cabinet Parts

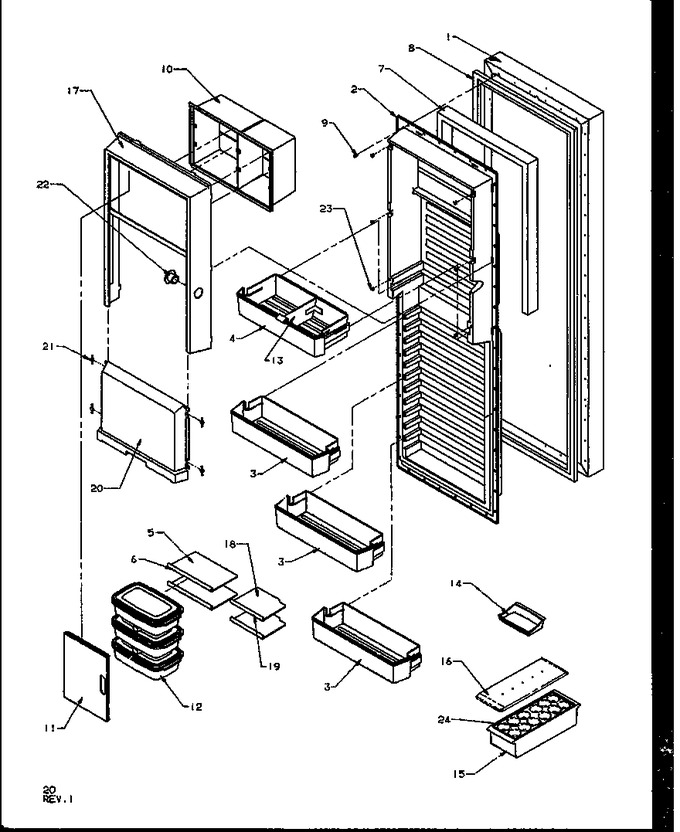

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10057509E		Assy.ref Door Fm		Appelez-nous	-
1	10057509W		Assy. Ref. Dr Fm		Appelez-nous	-
1	10057509L		Assy Ref. Door Fm		Appelez-nous	-
2	10111302		Liner Ref Door		Appelez-nous	-
3	10111102		Bucket Ref Dr		Appelez-nous	-
4	10111002		Bucket-igloo		Appelez-nous	-
5	10161902		Ass``y, Shelf		Appelez-nous	-
6	10162004		Ass``y, Shelf		Appelez-nous	-
7	B0523563		Insulation Ft. K		Appelez-nous	-
8	10359701		Gasket, Door (w Ref)		Appelez-nous	-
8	10359703		Gasket, Door (e Ref)		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	10154801		Cavity Dairy		Appelez-nous	-
11	10161607		Door, Dairy		Appelez-nous	-
12	D7806405		Container Sec. Ser.		Appelez-nous	-
13	10169005		Snugger, Shelf		Appelez-nous	-
14	10310901		Tray, Butter		Appelez-nous	-
15	10423124		Bin, Egg V		Appelez-nous	-
16	10436404		Lid, Utility				$ 60.85
17	10154901		Frame-igloo Dairy		Appelez-nous	-
18	10161901		Ass`y, Shelf Remove		Appelez-nous	-
19	10162003		Ext. Hz Dairy Shelf		Appelez-nous	-
20	10111807		Door, Igloo		Appelez-nous	-
21	10162101		Glide-igloo Door		Appelez-nous	-
22	10165001		Tunnel-air		Appelez-nous	-
23	10165101		Clip-tubular		Appelez-nous	-
24	10436504		Tray, Egg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
