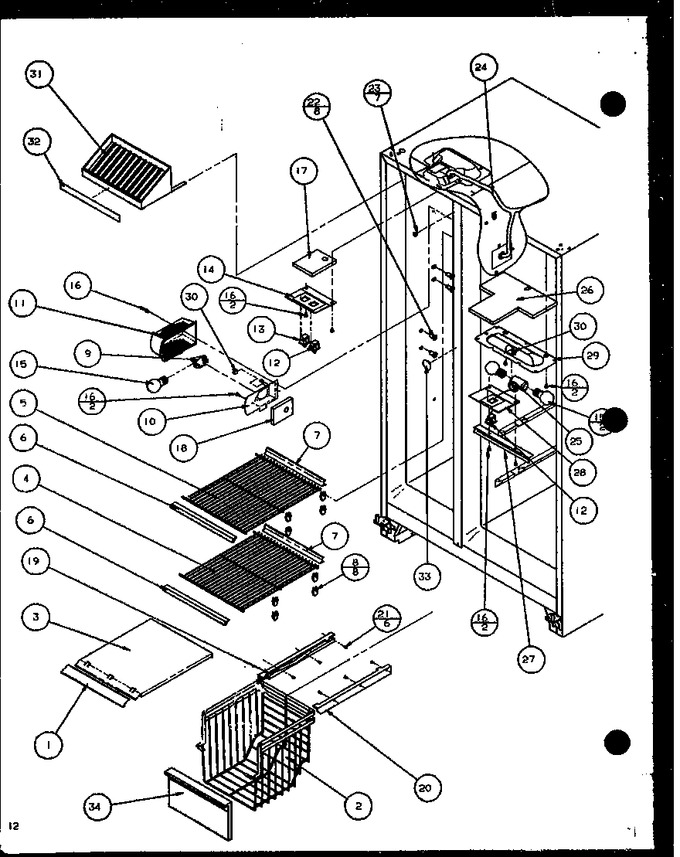

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7616625		Trim		Appelez-nous	-
2	D7820802		Basket, Frz		Appelez-nous	-
3	D7781506		Freezer Shelf Pnt		Appelez-nous	-
4	D7788310		Shelf, Frz		Appelez-nous	-
5	D7788311		Shelf, Freezer		Appelez-nous	-
6	C8913519		Trim		Appelez-nous	-
7	C8913609		Trim		Appelez-nous	-
8	C8973801		Support, Frz Shelf				$ 8.35
9	D7714402		Socket-light		Appelez-nous	-
10	D7753501		Plate Lt. Socket		Appelez-nous	-
11	D7786601		Shield, Frz Light		Appelez-nous	-
12	C8983802		Switch, Mc Light		Appelez-nous	-
13	C8983801		Switch, Fan		Appelez-nous	-
14	D7749001		Cover Light		Appelez-nous	-
15	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
16	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
17	C8976401		Barrier Frz.		Appelez-nous	-
18	C8974501		Barrier, Frz Side		Appelez-nous	-
19	D7849901		Driver		Appelez-nous	-
20	D7849902		Glide, Freezer Rh		Appelez-nous	-
21	M0213529		Screw		Appelez-nous	-
22	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
23	M0580007		Grommet, Screw		Appelez-nous	-
24	10030002		Harness Outer Liner		Appelez-nous	-
25	D7808602		Socket, Dual Lamp		Appelez-nous	-
26	C8778301		Insulation		Appelez-nous	-
27	10014708		Shield, Light		Appelez-nous	-
28	D7297602		Cover, Light Sw		Appelez-nous	-
29	D7716403		Housing-ref Light		Appelez-nous	-
30	B5733302		Clip, Ground		Appelez-nous	-
31	D7839701		Rack, Juice V		Appelez-nous	-
32	C8986105		Insert, Juice Rack		Appelez-nous	-
33	A3069103		Plug		Appelez-nous	-
34	D7820708		Front Basket		Appelez-nous	-
