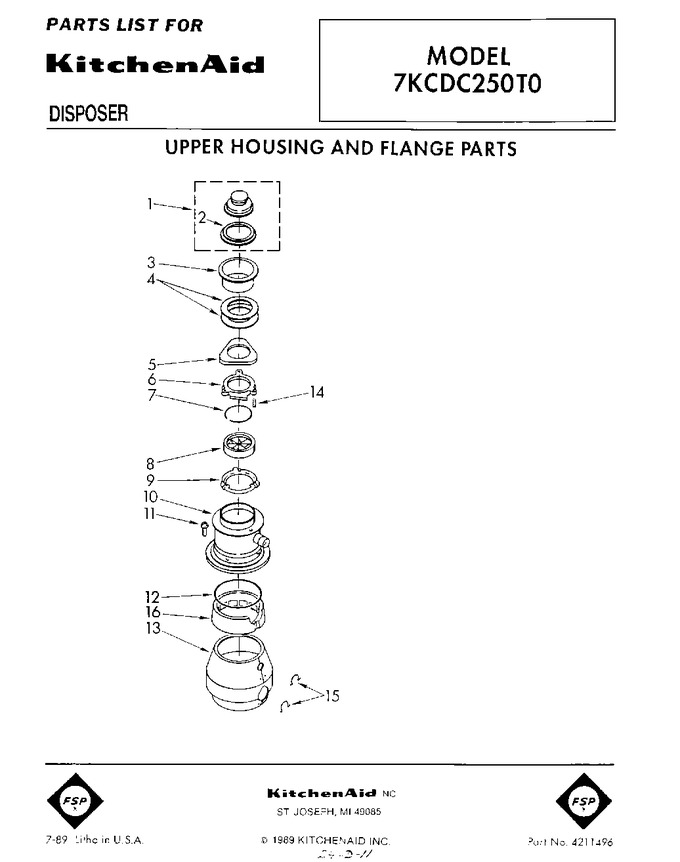

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4211577 | Stopper Assembly (Replaces: 4211332) |
|
$ 53.31 | |||||
| 2 | 4211333 | Gasket, Stopper |
|
$ 30.86 | |||||
| 3 | 4211301 | Flange, Strainer |
|
$ 81.01 | |||||
| 4 | WP4211302 | Gasket, Sink (2) (Replaces: 4211302) |
|
$ 8.58 | |||||
| 5 | 4211303 | Flange, Backup |
|
- | |||||
| 6 | 4211304 | Flange, Mounting |
|
$ 137.21 | |||||
| 7 | 4211306 | Ring, Retaining |
|
$ 10.56 | |||||
| 8 | WP4211334 | Gasket, Mounting (Replaces: 4211334) |
|
$ 35.56 | |||||
| 9 | 4211308 | Flange, Body |
|
- | |||||
| 10 | 4211336 | Container, Body Assembly |
|
- | |||||
| 11 | 4211335 | Screw (3) |
|
- | |||||
| 12 | 4211337 | O-ring |
|
- | |||||
| 13 | 4211338 | Trim Shell Assembly (includes Illus. No. 15) |
|
- | |||||
| 14 | 4211305 | Screw, Backup (3) |
|
$ 14.11 | |||||
| 15 | 4211339 | Clip, Trim Shell (2) |
|
- | |||||
| 16 | 4211444 | Insulation, Top |
|
- |
