SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Lit/optional

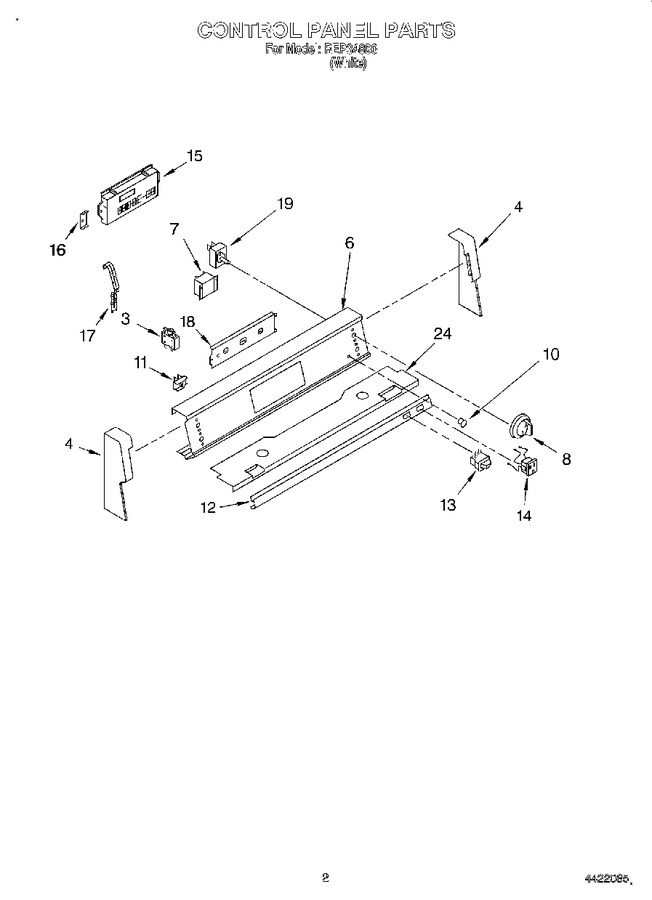

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3191073		Breaker, 15 Amp		Appelez-nous	-
4	9780265		End Cap (screw, (2) 10 X 3/8)		Appelez-nous	-
4	9752417FW		End Cap (right)		Appelez-nous	-
4	9752416FW		End Cap (left)		Appelez-nous	-
6	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
6	9752482		Panel, Control		Appelez-nous	-
7	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
7	WP9752759		Relay (2)   (Replaces: 9752759)			Immediately	$ 201.17
8	9750272FW		Knobs, Control (4)		Appelez-nous	-
10	WP9750343		Lens, Indicator (2)   (Replaces: 9752589)			Immediately	$ 6.00
11	313102		Light, Indicator (2) (cooktop)				$ 66.48
12	9752442PW		Trim Strip		Appelez-nous	-
13	3191100FW		Switch, Oven Light		Appelez-nous	-
14	9751480FW		Outlet, Untimed		Appelez-nous	-
15	3191085		Timer		Appelez-nous	-
15	9780272		Screw, (2) 10 X 1/2		Appelez-nous	-
16	9752783		Spacer - Ct150		Appelez-nous	-
17	3191038		Bracket, Timer		Appelez-nous	-
17	9780265		Screw, 10 X 3/8		Appelez-nous	-
18	3191039		Support. Relay		Appelez-nous	-
19	WP9750638		Infinite Switch (1400w (2))   (Replaces: 9750638)			Immediately	$ 170.81
19	WP9750641		Infinite Switch (2400w (2))   (Replaces: 9750641)			Immediately	$ 125.00
19	WP3400882		Infinite Switch (screw (8) 8-32 X 3/16)   (Replaces: 3400816)			Immediately	$ 7.55
24	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
24	9752439		Base, Console		Appelez-nous	-
24	WP3400832		Screw (3) 8 X 3/8   (Replaces: 3196168)			Immediately	$ 8.18
