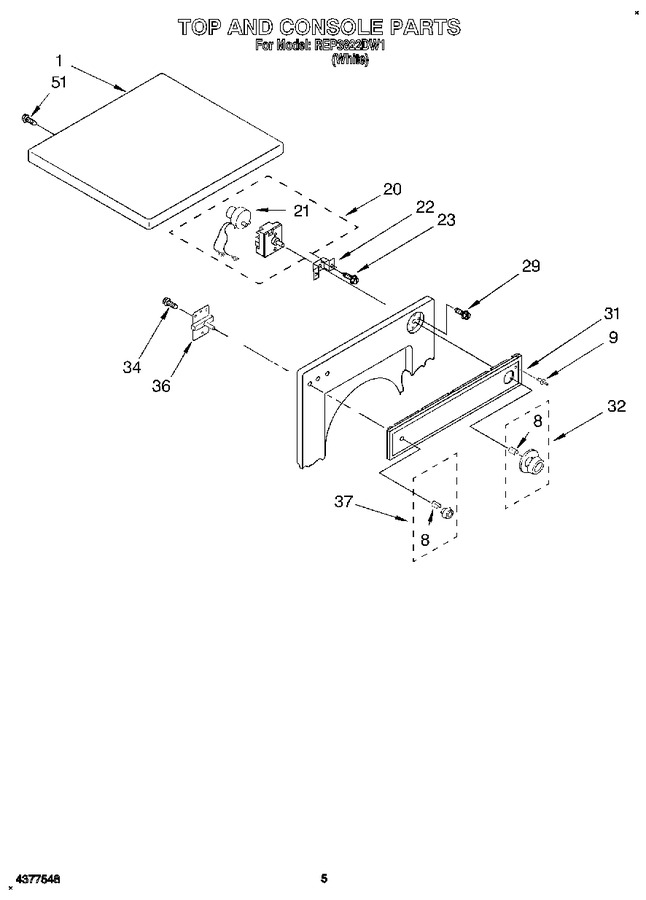

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	345703		Top (white)				$ 261.58
8	WP688805		Clip   (Replaces: 688805)			Immediately	$ 8.20
9	307563		Rivet, Pop (2)		Appelez-nous	-
20	WP8563881		Timer, 60 Hz.   (Replaces: 9830837)				$ 367.99
22	348171		Bracket, Timer		Appelez-nous	-
23	W11808444		Screw, 8-32 X 5/16 (2)   (Replaces: 98139)		Appelez-nous	-
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
31	9831673		Panel, Control		Appelez-nous	-
32	9831683		Timer Knob & Dial		Appelez-nous	-
34	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
36	9831692		Switch, Push-to-start		Appelez-nous	-
37	9831734		Knob, Push-to-start		Appelez-nous	-
51	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47

    View Diagram in Separate Window       Print Part List
