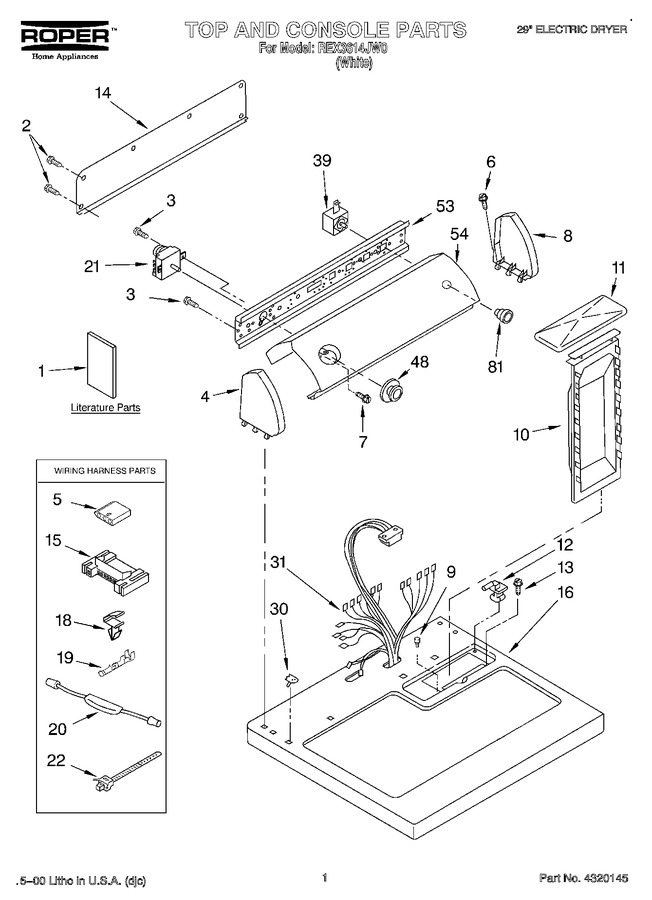

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3405637 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT3406688 | Literature Parts (label, Wiring Diagram) |
|
- | |||||
| 1 | LIT3397618 | Literature Parts (instructions, Installation) |
|
- | |||||
| 2 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 3 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 8.03 | |||||
| 4 | 8274438 | Cap, End (l.h.) |
|
- | |||||
| 5 | 3936144 | Connector |
|
$ 21.22 | |||||
| 6 | WP388326 | Screw, 8-18 X 1-1/4 (Replaces: 388326) |
|
$ 9.29 | |||||
| 7 | 3400859 | Screw, 8-18 X 7/32 |
|
$ 13.88 | |||||
| 8 | 8274435 | Cap, End (r.h.) |
|
- | |||||
| 9 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 8.11 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 8.11 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 16 | 8271390 | Top |
|
- | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 19 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 20 | 279872 | Resistor Assembly (Replaces: 3401076) |
|
$ 78.69 | |||||
| 21 | 8299763 | Timer |
|
- | |||||
| 22 | 3391249 | Tie, Cable |
|
- | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | 3394292 | Harness, Wiring |
|
- | |||||
| 39 | WP3395382 | Switch, Push-to-start (Replaces: 3395382) |
|
Immediately | $ 43.80 | ||||
| 48 | 8274381 | Timer Knob Assembly |
|
- | |||||
| 53 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 54 | 3977912 | Panel, Control |
|
- | |||||
| 81 | 978883 | Almond (uncut) |
|
- | |||||
| 81 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 81 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 81 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 81 | WP3352875 | Knob, Push-to-start (Replaces: 8274377) |
|
$ 2.28 | |||||
| 81 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 81 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 81 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
