SELECT A DIAGRAM

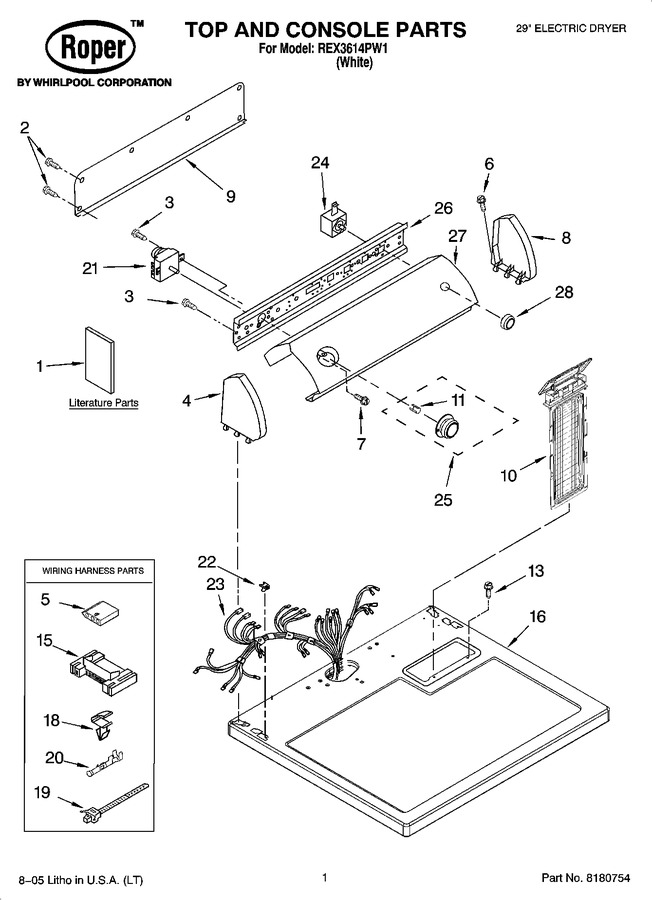

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8533782		Guide, Use & Care		Appelez-nous	-
1	8533780		Sheet, Cycle Feature		Appelez-nous	-
1	8535914		Instructions, Installation		Appelez-nous	-
1	8528187		Wiring Diagram		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
3	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
4	8274438		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 21.22
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
8	8274435		Cap, End (r.h.)		Appelez-nous	-
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
10	W10874409		Screen, Lint   (Replaces: 8558467)			Immediately	$ 67.01
11	WP688805		Spring Clip, Knob   (Replaces: 688805)			Immediately	$ 8.20
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	3391249		Tie, Cable		Appelez-nous	-
20	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
21	WP8299780		Timer, 60 Hz.   (Replaces: 8299780)				$ 358.87
22	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
23	8299865		Harness, Wiring		Appelez-nous	-
24	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
25	3957748		Timer Knob Assembly		Appelez-nous	-
26	8271418		Bracket, Control				$ 57.15
27	3977925		Panel, Control		Appelez-nous	-
28	3957802		Knob, Control		Appelez-nous	-
