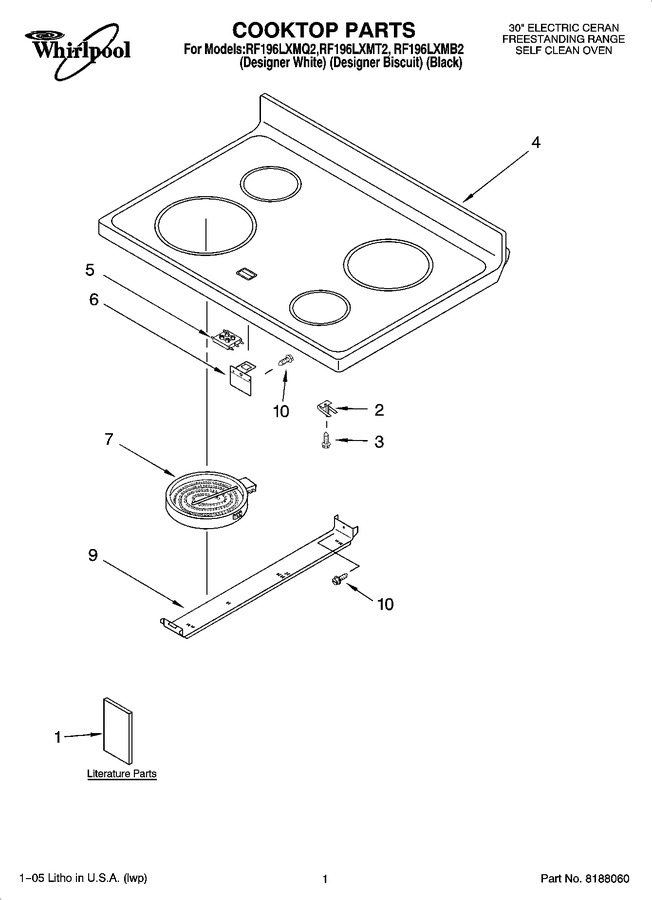

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759923 | (instructions, Installation Template, Anti-tip |
|
- | |||||
| 1 | 9757142 | Literature (english/spanish) |
|
- | |||||
| 1 | 9757143 | Literature (english/french) |
|
- | |||||
| 1 | 9761079 | Guide, Use & Care |
|
- | |||||
| 1 | 9757347 | Tech Sheet |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 9755833 | Cooktop (biscuit (t Model)) |
|
- | |||||
| 4 | 9755824 | Cooktop (black (b Model)) |
|
- | |||||
| 4 | 9755823 | Cooktop (white (q Model)) |
|
- | |||||
| 5 | 8523740 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 8524063 | Bracket, Ind Light |
|
- | |||||
| 7 | WPW10242957 | Element, Surface (2000w - Lf & Rr) (Replaces: 8523695) |
|
$ 332.00 | |||||
| 7 | W10823699 | Element, Surface (1500w - Lr & Rf) (Replaces: 8523697) |
|
Immediately | $ 169.95 | ||||
| 9 | 3196454 | Bracket, Element |
|
- | |||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
