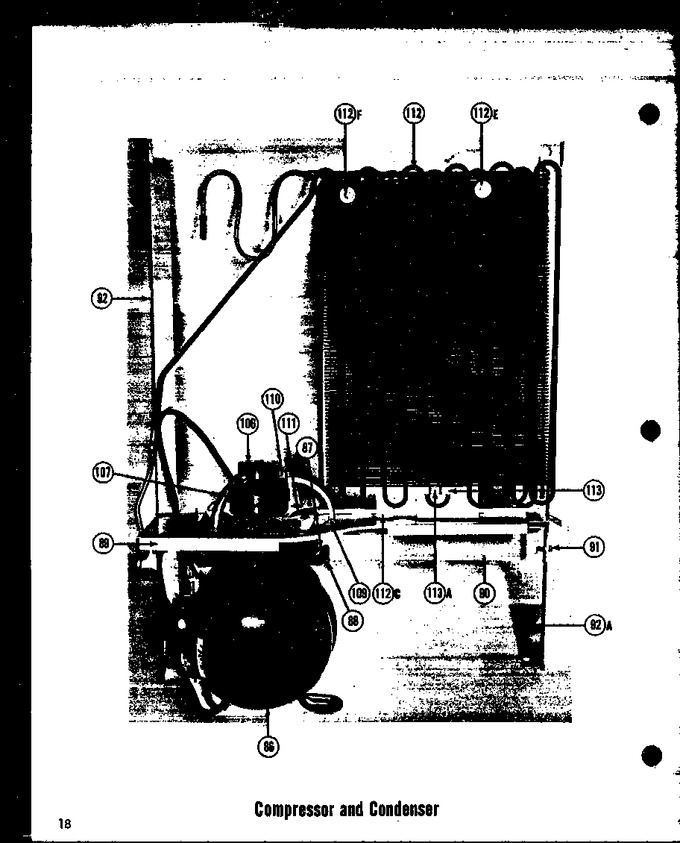

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
86	D3871701		Compresssor		Appelez-nous	-
86	D3871901		Compressor-ae1410a-1/4		Appelez-nous	-
87	A3026101		Grommet K		Appelez-nous	-
88	M0114401		Clip		Appelez-nous	-
89	C3617601		Fan Shroud		Appelez-nous	-
89	B0599701		Retainer		Appelez-nous	-
89	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
89	B0599603		Seal		Appelez-nous	-
90	C3617901		Weld Comp Supt Pnt		Appelez-nous	-
91	M0233643		Screw		Appelez-nous	-
92	C3603702		Angle, Back		Appelez-nous	-
92	C3617702		Angle		Appelez-nous	-
92	M0233643		Screw		Appelez-nous	-
97	A3072001		Sleeve K		Appelez-nous	-
106	833697		Motor, Fan   (Replaces: B5603501)			Immediately	$ 88.15
107	B0598701		Bracket, Cond Motor		Appelez-nous	-
108	YA0381501		Clip, Waterline		Appelez-nous	-
109	M0221132		Screw		Appelez-nous	-
110	M0220101		Screw		Appelez-nous	-
111	B0598501		Blade, Fan		Appelez-nous	-
112	M0257037		Sems Fastner		Appelez-nous	-
112	M0257039		Sems Fastner		Appelez-nous	-
112	M0286003		Nut A		Appelez-nous	-
112	A3013907		Spacer		Appelez-nous	-
112	B0544101		Spacer		Appelez-nous	-
112	D7010701		Condenser Assy Pnt		Appelez-nous	-
112	A3013906		Spacer		Appelez-nous	-
113	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
113	A3054501		Clip-cond		Appelez-nous	-
114	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
115	B0594501		Power Cord		Appelez-nous	-
116	D7004101		Timer, Defrost		Appelez-nous	-
117	C3588101		Bracket, Timer		Appelez-nous	-
NI	A0319701		Strain Relief		Appelez-nous	-
NI	A0382801		Gasket		Appelez-nous	-
NI	A3041801		Strap K		Appelez-nous	-
NI	A0382902		Cover Plate		Appelez-nous	-
NI	M0288302		Speed Nut		Appelez-nous	-
NI	C3552901		Overload		Appelez-nous	-
NI	WPB2150504		Drier   (Replaces: B2150501)				$ 136.98
NI	M0102315		Clamp		Appelez-nous	-
NI	A0382901		Cover Plate -g		Appelez-nous	-
NI	M0202516		Screw A		Appelez-nous	-
NI	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 8.25
NI	M0116401		Clip		Appelez-nous	-
NI	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40
NI	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
NI	C3533701		Overload		Appelez-nous	-
NI	A0382903		Cover Plate		Appelez-nous	-
NI	C3553401		Relay		Appelez-nous	-
NI	A3043601		Spring K		Appelez-nous	-
NI	B0551801		Terminal Cover		Appelez-nous	-
