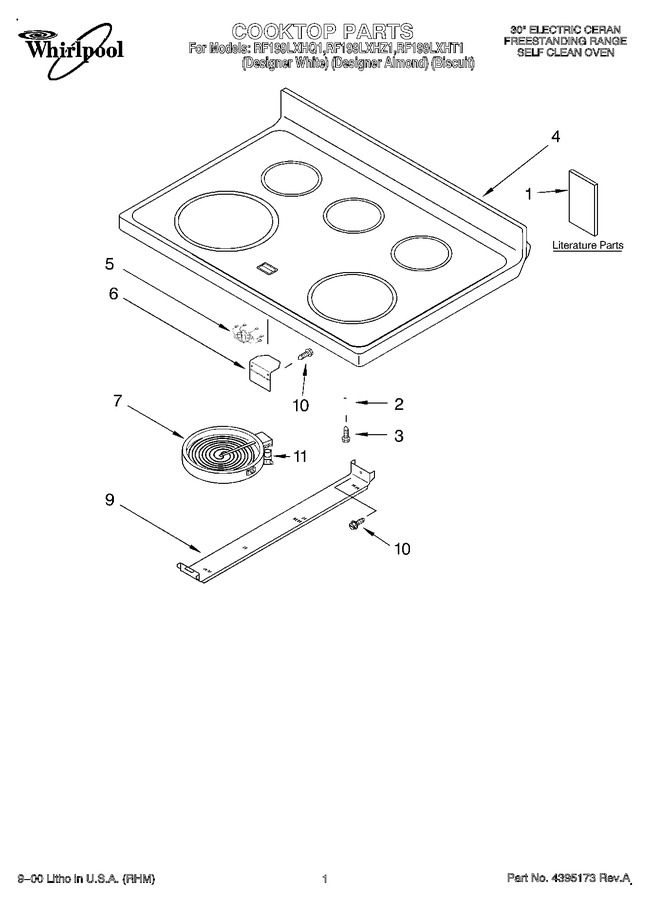

01 - Cooktop, Literature
02 - Door
03 - Chassis
04 - Control Panel
05 - Drawer And Broiler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3195945 | Literature (installation Instruction, (template)) |
|
- | |||||
| 1 | LIT8272344 | Literature (guide, Use & Care) |
|
- | |||||
| 1 | LIT8272342 | Literature (tech Sheet) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT8053714 | Literature (instructions, Installation) |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 8272515 | Cooktop (biscuit) |
|
- | |||||
| 4 | 8053221 | Cooktop (white) |
|
- | |||||
| 4 | 8053222 | Cooktop (almond) |
|
- | |||||
| 5 | 8273333 | Light, Indicator (hot Surface) |
|
- | |||||
| 6 | 3195810 | Bracket, Ind Light |
|
- | |||||
| 7 | W10823711 | Element, Surface (includes No. 8) (1200 W - Rr) (Replaces: 8272567) |
|
Immediately | $ 204.39 | ||||
| 7 | WP8523699 | Element, Surface (includes No. 8) (100 W - Cr) (Replaces: 8273641) |
|
$ 180.44 | |||||
| 7 | W10823696 | Element, Surface (includes No. 8) (2500 W - Lf) (Replaces: 8272565) |
|
Immediately | $ 214.25 | ||||
| 7 | W10823698 | Element, Surface (includes No. 8) (1800 W - Rf) (Replaces: 8272566) |
|
Immediately | $ 195.12 | ||||
| 9 | 8273720 | Bracket, Element ((1) Back Center) |
|
- | |||||
| 9 | 8272791 | Bracket, Element ((2)) |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | 8272690 | Light, Indicator (used On 8273641) |
|
- |
