SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts (not Included)

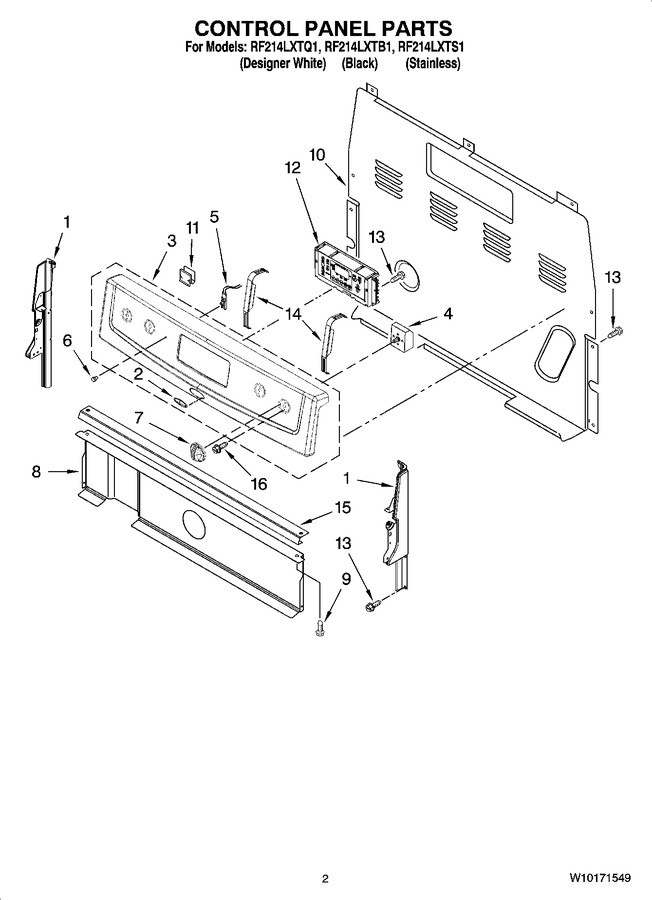

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Lh)   (Replaces: W10009040)				$ 40.43
1	W11219370		Endcap (white Rh)   (Replaces: W10009050)				$ 57.93
1	W11219664		Endcap (black Lh)   (Replaces: W10009080)				$ 146.50
1	W11219665		Endcap (black Rh)   (Replaces: W10009090)				$ 40.44
2	9757609		Nameplate				$ 33.27
3	W10127721		Panel, Backguard (stainless)		Appelez-nous	-
3	9762018		Panel, Backguard (white)		Appelez-nous	-
3	W10120937		Panel, Backguard (black)		Appelez-nous	-
4	WP3148952		Switch, Infinite (right Front)   (Replaces: 3148952)			Immediately	$ 69.51
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148953)			Immediately	$ 52.39
5	WP8523265		Light, Indicator Surface Unit (2)   (Replaces: 8523265)			Immediately	$ 86.31
6	WP3196068		Lens, Light (3)   (Replaces: 3196068)			Immediately	$ 6.26
7	WP9761962		Knob, Infinite (4) (white)   (Replaces: 9761962)			Immediately	$ 19.67
7	WP9761964		Knob, Infinite (4) (black)   (Replaces: 9761964)			Immediately	$ 21.24
8	W10134247		Shield, Heat			Immediately	$ 341.73
9	3196166		Screw				$ 7.01
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 208.61
11	WP8273564		Clip   (Replaces: 8273564)				$ 12.06
12	WPW10108290		Control, Range (black)   (Replaces: W10108290)				$ 441.46
12	WPW10108290		Control, Range (white)   (Replaces: W10108280)				$ 441.46
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
14	9762078		Brkt, Mntg Eoc				$ 38.13
15	9762095		Brkt-mntg, Console		Appelez-nous	-
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.19

    View Diagram in Separate Window       Print Part List
