Diagram # Part Number Description Series Availability Ships Price Add to Cart
61 A0375001 Grommet Appelez-nous -
62 M0113004 Clip Appelez-nous -
63 D3981103 Backer Plate Appelez-nous -
64 B0592304 Control-temp Appelez-nous -
65 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

66 D3953303 Air Deflector, Fz & Ref Appelez-nous -
67 B5634501 Thin Plate Appelez-nous -
68 D7009801 Knob Appelez-nous -
69 WP841180A Tray, Ice   (Replaces: A3049602) In-Stock Immediately $ 47.84

72 A0318001 Light Bulb Appelez-nous -
73 B5610302 Lamp Socket Appelez-nous -
74 C3617201 Cap K Appelez-nous -
75 D3953303 Air Deflector, Fz & Ref Appelez-nous -
80 D3937606 Pan, Crisper Appelez-nous -
83 B0571005 Support Appelez-nous -
84 B0571201 Support Appelez-nous -
89 C3612002 Escutheon Appelez-nous -
90 A3116203 Switch Appelez-nous -
97 M0288116 Speednut Appelez-nous -
98 B5616201 Control, Damper Appelez-nous -
99 D7058201 Backer Plate Appelez-nous -
100 M0113004 Clip Appelez-nous -
101 A3104502 Gasket Appelez-nous -
NI C3601801 Grille Appelez-nous -
NI WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20


    View Diagram in Separate Window     Print Icon   Print Part List

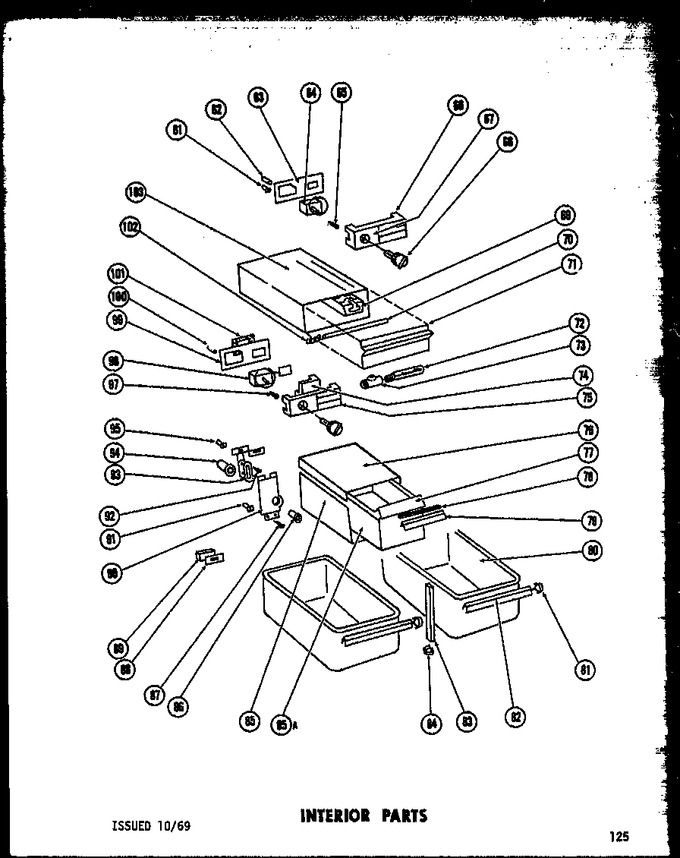

Diagram for T15-F
