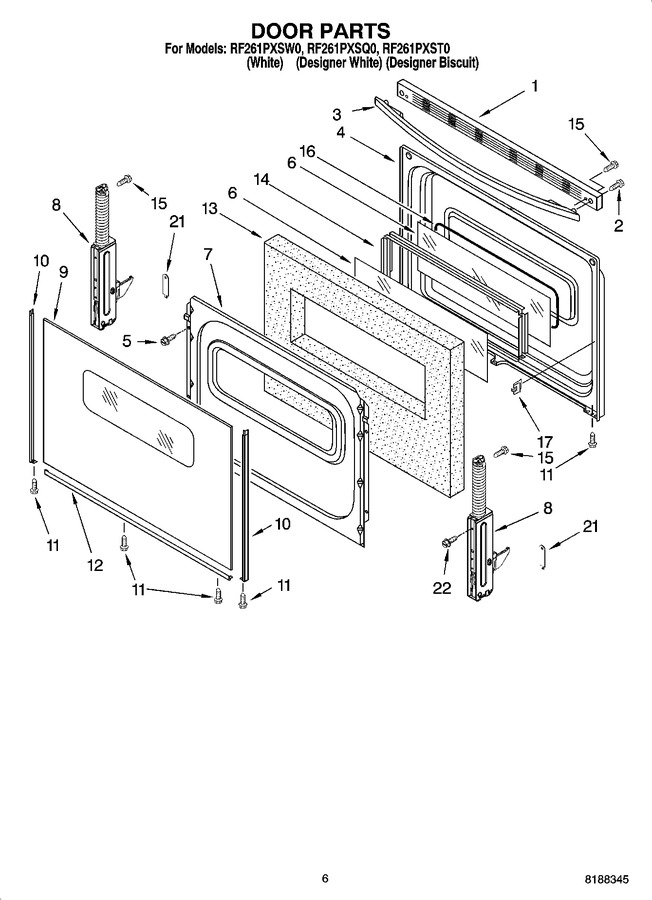

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9761975		Trim, Top (white)				$ 82.31
1	9761976		Trim, Top (biscuit)		Appelez-nous	-
1	WP9762391		Trim, Top (black)   (Replaces: 9762391)				$ 208.97
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	9761982		Handle, Door (white)				$ 125.85
3	9761984		Handle, Door (biscuit)		Appelez-nous	-
3	9761983		Handle, Door (black)				$ 116.42
4	9761340		Liner, Door				$ 361.12
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP9758164		Window, Inner   (Replaces: 9758164)				$ 159.93
7	9761499		Retainer, Insul.				$ 325.33
8	W10347466		Hinge, Door (2)   (Replaces: 9761493)			Immediately	$ 219.84
9	WP9762477		Glass, Outer (black)   (Replaces: 9762477)				$ 330.12
9	9762478		Glass, Outer (biscuit)		Appelez-nous	-
9	WP9762476		Glass, Outer (white)   (Replaces: 9762476)				$ 332.66
10	WP8523166		Trim, Side (white Right Hand)   (Replaces: 8523166)			Immediately	$ 84.23
10	WP8523172		Trim, Side (white Left Hand)   (Replaces: 8523172)			Immediately	$ 69.93
10	WP8523173		Trim, Side (biscuit Left Hand)   (Replaces: 8523173)				$ 123.53
10	WP8523167		Trim, Side (biscuit Right Hand)   (Replaces: 8523167)				$ 119.10
10	W10761018		Trim, Side (black Left Hand)   (Replaces: 8523171)			Immediately	$ 53.77
10	W10761014		Trim, Side (black Right Hand)   (Replaces: 8523165)			Immediately	$ 72.96
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
12	WP8523177		Trim, Lower (black)   (Replaces: 8523177)			Immediately	$ 165.86
12	WP8523178		Trim, Lower (biscuit)   (Replaces: 8523178)				$ 161.77
12	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 61.37
13	WPW10278991		Insulation   (Replaces: 8272618)			Immediately	$ 101.37
14	3186290		Frame, Window		Appelez-nous	-
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
16	8522415		Seal, Window				$ 75.50
17	3196025		Clip, Glass (6)				$ 20.10
21	9761517		Clip, Door Mntg (2)				$ 48.11
22	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
	WP3196174		Screw (grnd Wire/back)   (Replaces: 3196174)			Immediately	$ 8.44
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 94.14
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	3191048		Cleaner, Glass		Appelez-nous	-
	4396923		Pan - Broiler			Immediately	$ 60.71
	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 28.54
	9762428		Harness, Wire, Door Switch/sensor		Appelez-nous	-
	3184020		Wire, Ground   (Replaces: 311227)				$ 86.92
	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	9762952		Harness, Wire (main)		Appelez-nous	-
	313660		Clip, Wire Ground		Appelez-nous	-
	W11244557		Screw   (Replaces: 3196173)				$ 14.29
	8524114		Relief, Strain		Appelez-nous	-
	8524132		Shield, Wiring		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
