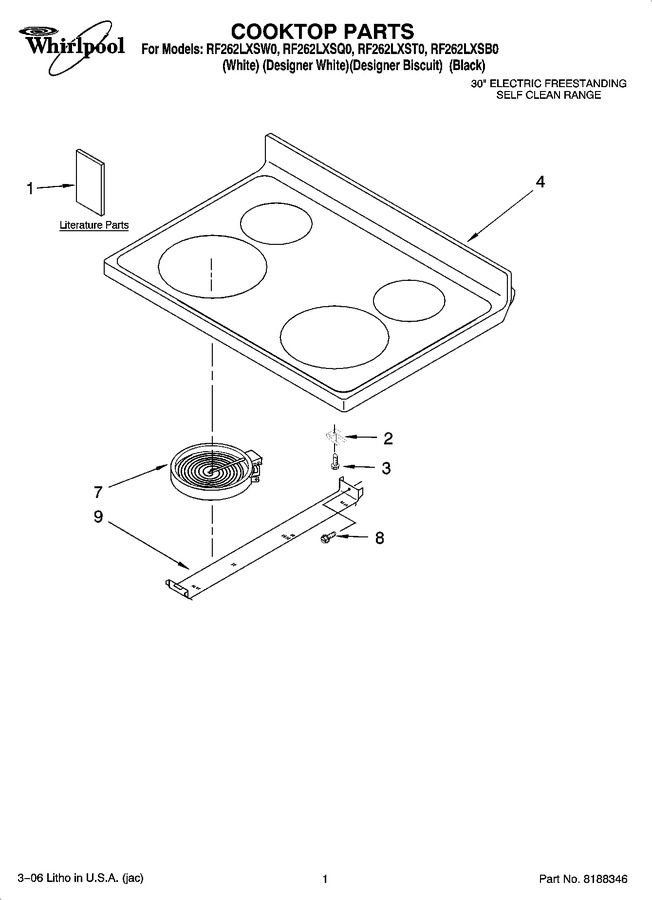

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762996 | Instructions Installations Template, Anti-tip |
|
- | |||||
| 1 | 9757142 | Literature (english/spanish) |
|
- | |||||
| 1 | 9757143 | Literature (english/french) |
|
- | |||||
| 1 | 9763001 | Owners Manual |
|
- | |||||
| 1 | 9762972 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | 9763324 | Cooktop (white) |
|
- | |||||
| 4 | 9763326 | Cooktop (black) |
|
- | |||||
| 4 | 9763325 | Cooktop (biscuit) |
|
- | |||||
| 7 | W10823696 | Element, Surface (2500 W - Lf/rf) (Replaces: 8523692) |
|
Immediately | $ 214.25 | ||||
| 7 | W10823711 | Element, Surface (1200 W - Lr,rr) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 8 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 9 | 8272791 | Bracket, Element |
|
- |
