View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

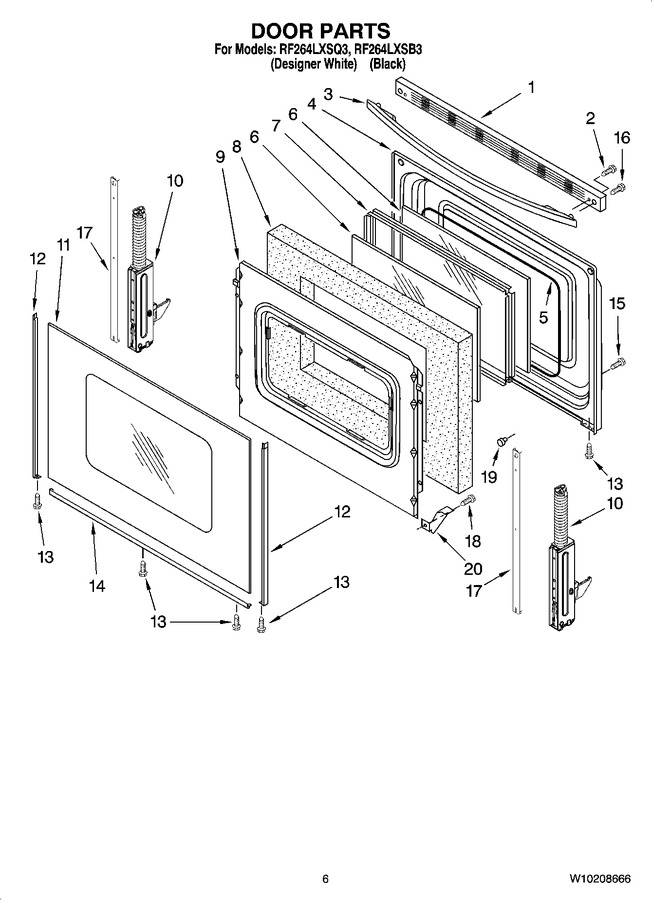

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top (white) (Replaces: W10144869) |
|
Immediately | $ 103.27 | ||||
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10144870) |
|
Immediately | $ 175.37 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 8.14 | ||||
| 3 | W10817434 | Handle, Door (white) (Replaces: W10118384) |
|
Immediately | $ 234.82 | ||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10118385) |
|
Immediately | $ 238.78 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | 8522414 | Seal, Window |
|
$ 160.59 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 233.31 | |||||
| 10 | W10347466 | Hinge, Door (2) (Replaces: 9761493) |
|
Immediately | $ 219.84 | ||||
| 11 | WPW10118454 | Glass,outer (white) (Replaces: W10118454) |
|
$ 324.91 | |||||
| 11 | WPW10118455 | Glass, Outer (black) (Replaces: W10118455) |
|
Immediately | $ 332.70 | ||||
| 12 | WP8523172 | Trim, Side (white Right Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | WP8523166 | Trim, Side (white Left Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 16 | WPW10200660 | Screw (Replaces: W10178180) |
|
Immediately | $ 8.24 | ||||
| 17 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 27.68 | ||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 19 | 238614 | Bumper, Door (2) (Replaces: 3195809) |
|
$ 84.79 | |||||
| 20 | 3196794 | Bracket, Window (2) |
|
$ 24.34 | |||||
| W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 3184478 | Cleaner, Glass |
|
- | ||||||
| 4396923 | Broiler Pan Assy |
|
Immediately | $ 60.71 | |||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 28.54 | |||||
| W10251772 | Harness, Wire (main) (Replaces: W10114335) |
|
- | ||||||
| W11172524 | Harness, Wire Door Switch/sensor (Replaces: W10084660) |
|
$ 217.19 | ||||||
| W11396691 | Harness, Wire (surface Unit) (Replaces: 9761476) |
|
$ 189.76 | ||||||
| 3184020 | Wire, Ground (Replaces: 311227) |
|
$ 86.92 | ||||||
| WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | ||||||
| 313660 | Clip, Wire Ground |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 87.22 | |||||
| 261582 | Grease |
|
- |
